Customized 2 layer aluminum pcb for Dance lighting DC 12V LED module flashing

China Customized 2 layer aluminum pcb for Dance lighting DC 12V LED module flashing supplier

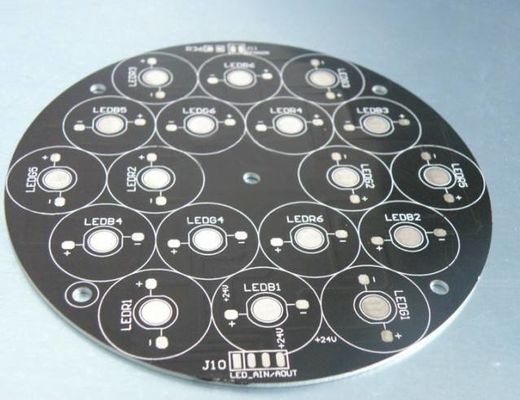

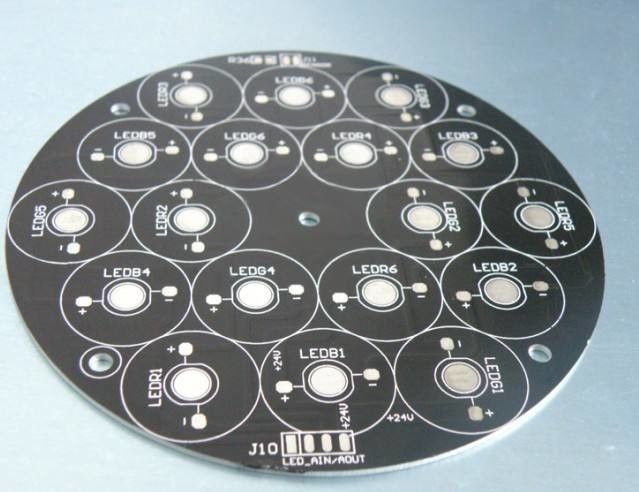

Large Image :  Customized 2 layer aluminum pcb for Dance lighting DC 12V LED module flashing

Product Details:

Place of Origin: China
Brand Name: No
Certification: UL,Rohs
Model Number: SL71116L005

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD0.01-10/PC
Packaging Details: Inner package: Vacuum package+dryer Outer package:Carton package+Bulb package
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 Piece/Pieces per Day
Contact Now
Detailed Product Description

Customized 2 layer aluminum pcb for Dance lighting DC 12V LED module flashing





1. Reverse Engineering Services
2. Fast PCB and PCBA Prototyping
3. Cable and Wire Assemblies
4. Plastics and Molds
5. Function Testing



Led PCB Specification



Product Name led pcb
Type 1-4 Layer
Max Panel 20"*24" (1170mm*600mm)
Copper Thickness 0.5oz, 1oz, 2oz, 3oz,4oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Substrated Core Thickness

0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,

1.5mm,2.0mm, 3.0mm and 3.2mm

Board Thickness 0.4mm - 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining

Drilling,Tapping,Milling,Routing, Die-Punching,

Break-off tab available

Min Hole 0.25mm
Max Working Voltage

2.5kVDC(0.075mm Dielectric),

3.75kVDC (0.15mm Dielectric)

Min Track Width 0.2mm (8mil)
Min Track Gap 0.2mm (8mil)
Min SMD Pad Pitch 0.2mm (8mil)
Surface Finishing HASL, HASL Leadfree, Immersion gold, Flash Gold, OSP
Solder Mask Color White, Black, others Available
Legend Color Black, White, others Available
E-test Yes
Rohs Yes
Reference Standard IPC-A-600G Class 2
Special Hole Spot facing, Cup holes





Description



1. Aluminium PCB Circuit Layer

The circuit layer (commonly used electrolytic copper foil) is etched to form the printed circuit, Compared to FR4 material, Aluminium PCB can bear higher electric current when same thick circuit layer and same trace width.



2. Aluminium PCB Insulating Layer /Dielectic Layer

The insulating layer is the core technology of the Aluminium PCB, which mainly serves as the function of adhesion, insulation and heat conduction. The better the thermal conductivity of insulation is, the quicker the components spread the heat when they work, which can realize the purpose like improving power loading of the modules,reducing volume, extending life span and increase the output power. Shinelink has rich experience in manufacturing aluminium PCB with high thermal conductivity.



3. Aluminium PCB Metal Base Layer

Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc. If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.
