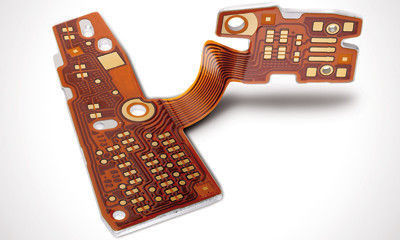

Blind Via Flexible PCB 2OZ 4 layer , FPCB assemlby with RoHS Certification

Good quality Turnkey PCB Assembly for sales
Good quality Turnkey PCB Assembly for sales
very nice service, price is competitive and reasonable, delivery is fast and on time, I like working with your company.

—— Ali

you guys offer very good quality product and quick response on quotes, I am very happy and satisfied. thanks for all your support.

—— David

Good quality with best service, Good job, Sandy !

—— Dan

So appreciate to Sandy, very fast delivery, good quality. I will order from you next month.

—— Sam

I'm Online Chat Now

Blind Via Flexible PCB 2OZ 4 layer , FPCB assemlby with RoHS Certification

China Blind Via Flexible PCB 2OZ 4 layer , FPCB assemlby with RoHS Certification supplier

Large Image :  Blind Via Flexible PCB 2OZ 4 layer , FPCB assemlby with RoHS Certification

Product Details:

Place of Origin: China
Brand Name: No
Certification: UL, ROhs
Model Number: SL71208L023

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: ESD Bag
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Copper Thickness: 2OZ Layer: 4 Layer
Certificate: UL, RoHS Min.Lin Width: 0.075mm
Feature 1: Gerber File Needed Feature 2: 100% E-test

Blind Via Flexible PCB 2OZ 4 layer, FPCB assemlby with UL RoHS





1. Ployimide material

2. 0.15mm Board thickess

3. 1OZ Copper thickness

4. ENIG Surface finishing

5. UL/ RoHS Certificate



Specifications

1. Certificate of UL, ISO9001, TS16949.
2. 4-5 days fast Flexible PCB(FPC) and PCB delivery
3. Our Products meet the RoHS & HASL lead-free requirement.
4. Minimum Order: 1 Pieces
5. Flexible PCB(FPC) and PCB manufacturer



Advantage



1. Turnkey manufacturing or quick-turn prototypes
2. Board-level assembly or complete system integration
3. Low-volume or mixed-technology assembly for PCBA
4. Even consignment production
5. Supported capabilities





Detailed Specification of Flexible PCB Manufacturing



Technical Specification
Layers 1~10 (flex Pcb) and 2~8 (rigid flex)
Min Panel Size 5mm x 8mm
Max Panel Size 250 x 520mm
Min Finished board thickness 0.05mm (1 sided inclusive copper)
Max Finished board thickness 0.3mm (2 sided inclusive copper)
Finished board thickness tolerance ±0.02~0.03mm
Material Kapton, Polyimide, PET
Base copper thickness (RA or ED) 1/3 oz, 1/2 oz, 1oz, 2oz
Base PI thickness 0.5mil, 0.7mil, 0.8mil, 1mil, 2mil
Stiffner Polyimide, PET, FR4, SUS
Min Finished hole diameter 0.15mm
Max Finished hole diameter 6.30mm
Finished hole diameter tolerance (PTH) ±2 mil ( ±0.050mm)
Finished hole diameter tolerance (NPTH) ±1 mil ( ±0.025mm)
Min width/spacing (1/3oz) 0.05mm/0.06mm
Min width/spacing (1/2oz) 0.06mm/0.07mm
Min width/spacing (1oz) Single layer 0.07mm/0.08mm
Double layer 0.08mm/0.09mm
Aspect Ratio 6:01 8:01
Base Copper 1/3Oz--2Oz 3 Oz for Prototype
Size Tolerance Conductor Width:±10% W ≤0.5mm
Hole Size: ±0.05mm H ≤1.5mm
Hole Registration: ±0.050mm
Outline Tolerance:±0.075mm L ≤50mm
Surface Treatment ENIG: 0.025um - 3um
OSP:
Immersion Tin: 0.04-1.5um
Dielectric Strength AC500V
Solder Float 288℃/10s IPC Standard
Peeling Strength 1.0kgf/cm IPC-TM-650
Flammability 94V-O UL






Product Description


Shinelink company is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to gurantee a complete service with technical back up, offering a cost advantage and continuity of supply.

Our aim. High quality, low cost and fast delivery for Flexible PCB(FPC) and PCB Assembly.
Service. One-stop-service for Flexible PCB(FPC) and PCBA Assembly.
Verification. UL, ISO, RoHS
Product Name. High Quality Flexible PCB, Rigid Flex FPC



Shipping Method and Payment terms


1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.




Contact Details
Shenzhen Shinelink Technology Ltd

Contact Person: Ms Xia

Tel: +8613590384973

Send your inquiry directly to us (0 / 3000)
