|Board Thickness:||1.6mm||Min.Line Spacing:||0.075mm|
|Min.hole Size:||0.2mm||Layer:||2 Layers|
double layer pcb board,
double sided printed circuit boards

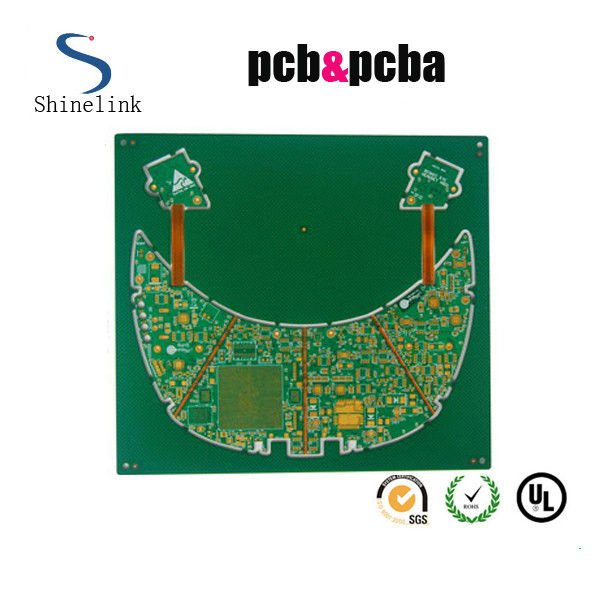

UL 94v0 double sided pcb board for medical equipment with 1.6mm
1. Fast and one-stop service
2. Accept Design,Clone,OEM,ODM service
5. Quote within 24hours with Chinese and US office
Detailed Specification of PCB Manufacturing
CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide,
|4||Max.finished board size||800*508mm|
|5||Min.drilled hole size||0.25mm|
HAL, HAL Lead free,Immersion Gold/ Silver/Tin,
Hard Gold, OSP
|10||Solder mask color||green/black/white/red/blue/yellow|
|11||Inner packing||Vacuum packing, Plastic bag|
|12||Outer packing||standard carton packing|
Why choose Shinelink?
1. Factories 15 years PCB manufacturer
2. Layer. 1- 30 layer
3. Copper thickness. 0.5-4.0 oz
4. Immersion gold. 1u 3u 5u
5. One-stop service. design,manufacture,assembling,test,housing
6. Test. Probe-flying test, E-test, AOI,X-ray test,ICT function
7. 100% test before shipment
8. Certification. RoHS, UL, ISO-9001, ISO-14001
9. Thick moistureproof packaging
10. Small and large volumn available
11. High quality with competitive price
Shinelink provide best Electronic Services
1. PCB Production Service. (FR-4,HI-TG,Aluminum,FPC,TEFLON,CEM-1 )
2. FPC,PCB Copy Service.
3. PCB Assembly Service. (SMT, BGA, DIP)
3. IC program with HEX file.
4. PCBA Housing assembly serivce.
5. PCBA Final Functional Testing.
6. PCBA Copy Service.
7. Electronic Components Purchasing & BOM List Purchasing Services.
8. PCB SMT Stencil. (Laser cut & Etching)
9. Cable assembly
Professional on PCB and PCBA for 12 years -- One-Stop Service!!!!
1. PCB EMC design/corrective services/Testing sevices/Certification services
2. From 2 to 24 layers PCB Fabrication
3. From sample to batch processing
4. 48 hours fastest delivery
5. IPC2/3 acceptance criteria
6. Factory direct wholesale price
7. Replying with price within 1 day.
8. Certificate. ROHS, UL,SGS,9001-2000, ISO14001, SGS Lead-Free
1. What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products
2. Are my design files secure when I send them to you?
Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3. For small quantity orders, can you produce prototype PCBs?
Yes. Shinelink Technology Ltd has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.
4. Do you have an order minimum?
We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).
5. What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
