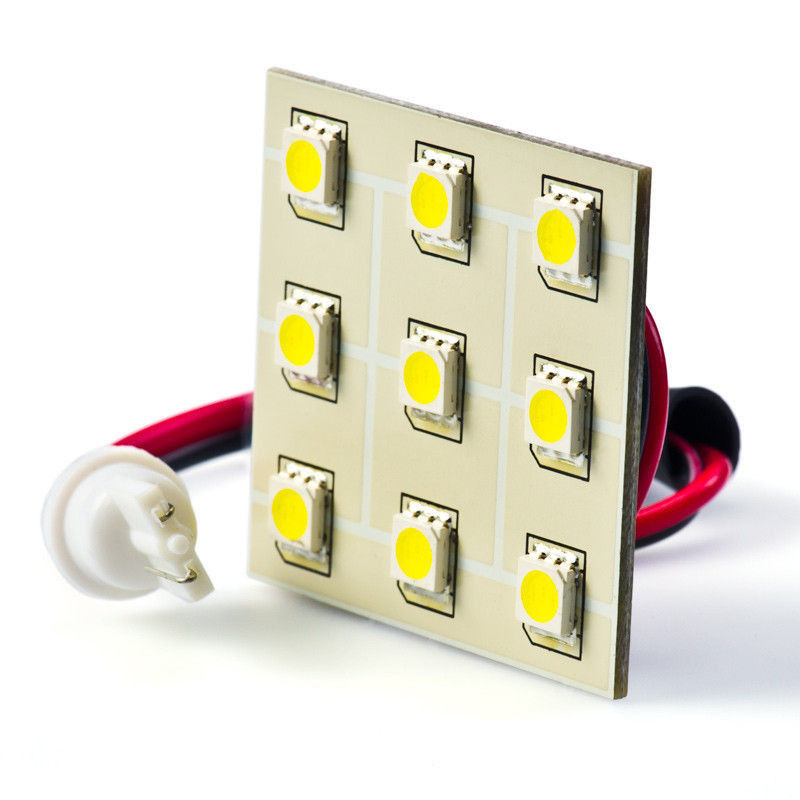

LED PCB Assembly

LED PCB Assembly

LED PCB Assembly

LED PCB now widely used in more and more areas because of it’s Energy Saving and Environmental Protection.



Shinelink Technology Ltd is professional LED PCB, LED Board, LED Light Board, LED Circuit Board Manufacturer in China, we supply various high quality LED PCB, LED Board with the best price. All our LED PCB, LED printed circuit boards are ideal for use with solar power due to very low energy consumption.



Led PCB Specification



Product Name  LED PCB
Type 1-4 Layer
Max Panel 20"*24" (1170mm*600mm)
Copper Thickness 0.5oz, 1oz, 2oz, 3oz,4oz
Dielectric Thickness 0.05mm, 0.075mm, 0.1mm,0.15mm,0.2mm
Substrated Core Thickness

0.4mm,0.6mm, 0.8mm, 1.0mm, 1.2mm,

1.5mm,2.0mm, 3.0mm and 3.2mm

Board Thickness 0.4mm - 4.0mm
Thickness Tolerance +/-10%
Aluminum Machining

Drilling,Tapping,Milling,Routing, Die-Punching,

Break-off tab available

Min Hole 0.25mm
Max Working Voltage

2.5kVDC(0.075mm Dielectric),

3.75kVDC (0.15mm Dielectric)

Min Track Width 0.2mm (8mil)
Min Track Gap 0.2mm (8mil)
Min SMD Pad Pitch 0.2mm (8mil)
Surface Finishing HASL, HASL Leadfree, Immersion gold, Flash Gold, OSP
Solder Mask Color White, Black, others Available
Legend Color Black, White, others Available
E-test Yes
Rohs Yes
Reference Standard IPC-A-600G Class 2
Special Hole Spot facing, Cup holes
