FR4 Rigid PCBA Electronic Pcb Component Assembly , Electronic Board Assembly

FR4 Rigid PCBA Electronic Pcb Component Assembly , Electronic Board Assembly

  • High Light

    electronic board assembly

    ,

    electronic circuit board components

  • Base Material
    FR-4 Epoxy Resin
  • Model Number
    Customized
  • Layer
    1-20 Layers
  • Feature 1
    Gerber File Needed
  • Feature 2
    100% E-test
  • Feature 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,ROhs
  • Model Number
    SL81028S008
  • Minimum Order Quantity
    1pc
  • Price
    USD2.2-5/PC
  • Packaging Details
    ESD Bag
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000pcs per day

FR4 Rigid PCBA Electronic Pcb Component Assembly , Electronic Board Assembly

Custom PCB board smt assembly,FR4 rigid PCBA,Electronic PCB assembly




Based in Shenzhen, Shenzhen SHINELINK Technology Ltd specialize in pcb design, pcb fabricate, components sourcing, and one stop pcb assembly service, also could provide



- Reverse Engineering Services
- Fast PCB&PCBA Prototyping
- Cable&Wire Assemblies
- Plastics and Molds
- Function Testing




DIP Processing


SHINELINK has three DIP processing lines, professional working platforms and carriers, this ensures a output capacity of 1 500 000pcs per day. For every process, technical and standard operation guidelines are made to follow, with strict KPI, this makes sure of 99.8% of pass for every PCBA. Lower our rejects, create more value for clients.





PCB Manufacturing Lead Time.



Layer/Days Sample(Normal) Sample(Fast) Mass Production
Single/Double 2-3days 24hours 5-7days
Four Layer 7-10days 3days 7-10days
Six Layer 7-10days 5days 13-15days
Eight Layer 15-20days 7days 15-20days




PCB Assembly Capabilities



Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCB assembly
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

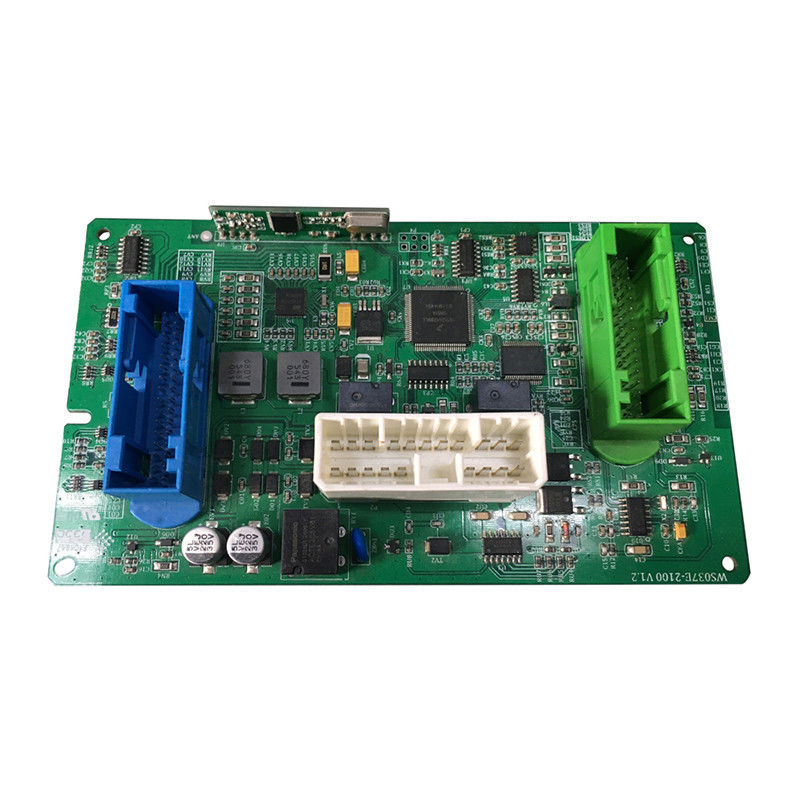

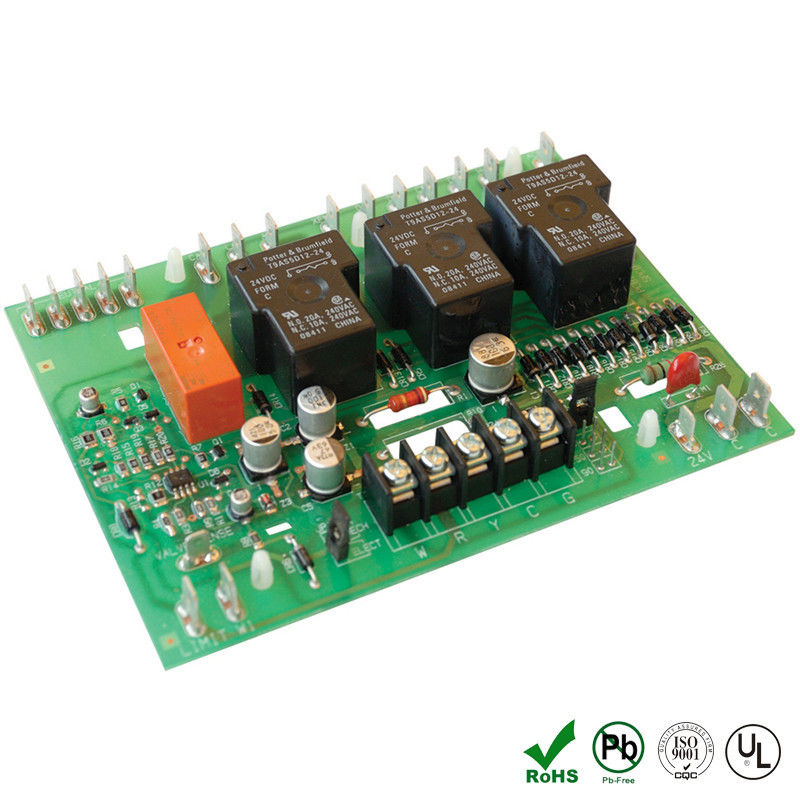

PCBA Picture
