Hoverboard Pcb Assembly Pcb Board Manufacturer Smt Pcba Assembly
Quote requirement
1.Gerber file of the bare PCB board
2.BOM (Bill of material) for assembly
3.To short the lead time, please kindly advise us if there is any acceptable components substitution.
4.Testing Guide & Test Fixtures if necessary
5.Programming files & Programming tool if necessary
6.Schematic if necessary
Shinelink kinds PCBA Product
94V0 PCBA manufacture Scale capabilities up to
We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly
SMT process (RoHs Compliant) Capabilities up to:
1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils
THT(Wave soldering) process (RoHs Compliant) Capabilities up to:
1.Single side wave soldering
2.SMT & THT mixture process
PCB Assembly Capabilities
|
Turnkey PCBA |
PCB+components sourcing+assembly+package |
|
Assembly details |
SMT and Thru-hole, ISO lines |
|
Lead Time |
Prototype: 15 work days. Mass order: 20~25 work days |
|
Testing on products |
Flying Probe Test, X-ray Inspection, AOI Test, functional test |
|
Quantity |
Min quantity: 1pcs. Prototype, small order, mass order, all OK |
|
Files we need |
PCB: Gerber files(CAM, PCB, PCBDOC) |
|
Components: Bill of Materials(BOM list) |
|
|
Assembly: Pick-N-Place file |
|
|
PCB panel Size |
Min size: 0.25*0.25 inches(6*6mm) |
|
Max size: 20*20 inches(500*500mm) |
|
|
PCB Solder Type |
Water Soluble Solder Paste, RoHS lead free |
|
Components details |
Passive Down to 0201 size |
|
BGA and VFBGA |
|
|
Leadless Chip Carriers/CSP |
|
|
Double-sided SMT Assembly |
|
|
Fine Pitch to 0.8mils |
|
|
BGA Repair and Reball |
|
|
Part Removal and Replacement |
|
|
Component package |
Cut Tape,Tube,Reels,Loose Parts |
|
PCB assembly |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |

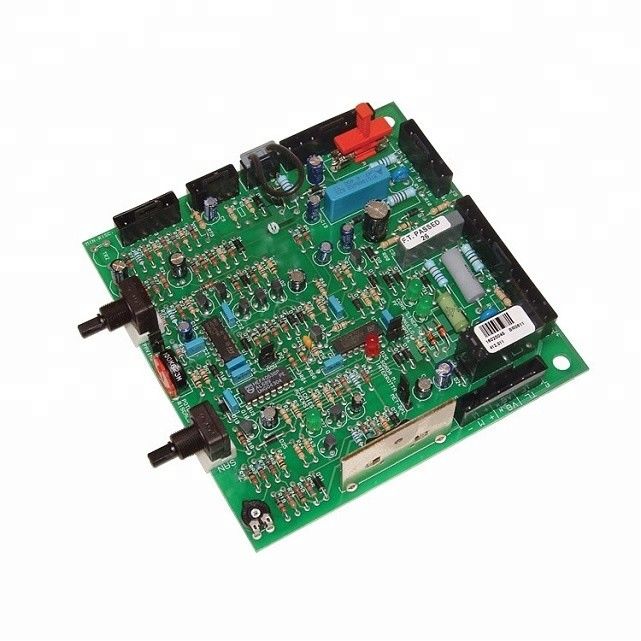

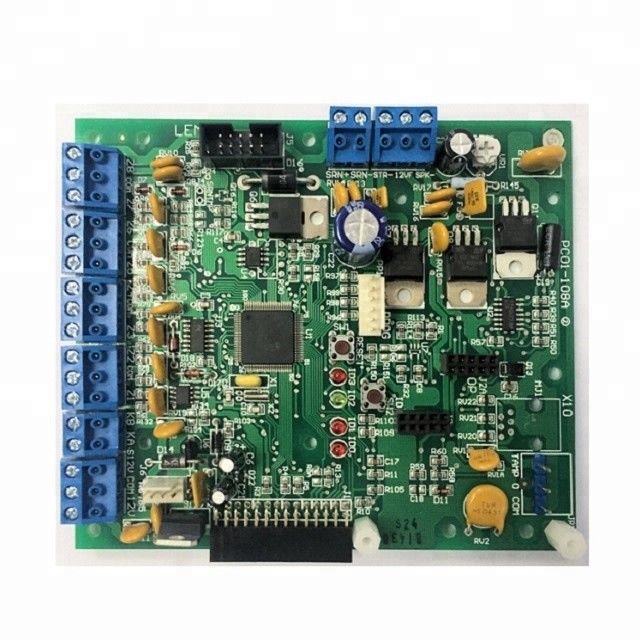

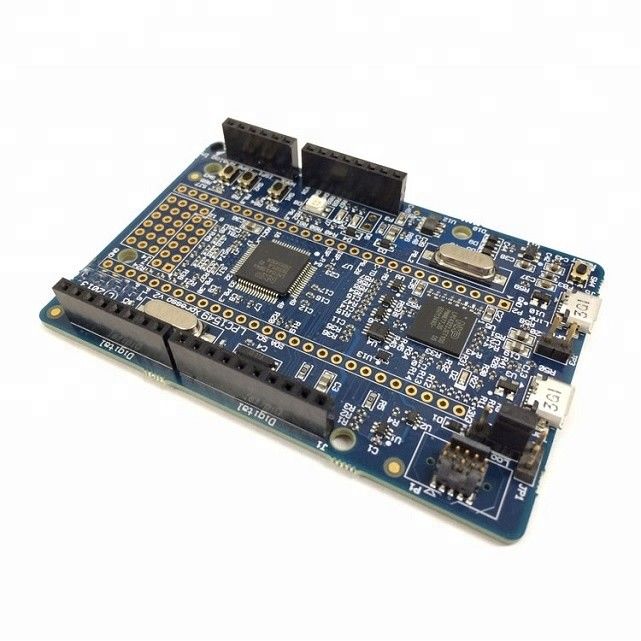

PCBA Picture
Our products are sold all over the world, you can rest assured.
