SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated

SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated

  • High Light

    printed circuit assembly

    ,

    pcb board assembly

  • Name
    OEM Electronic Pcba
  • Application
    Consumer Electronics
  • Layer Count
    4 Layers
  • Features 1
    Gerber/PCB File Needed
  • Features 2
    100% E-test
  • Features 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL90106S010
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    100000pcs per day

SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated

SMT PCBA Printed Circuit Board Assembly ,Custom Pcba Assembly ISO/UL


This 4 layers multilayer PCBA is assembly with SMT and DIP. The bare printed circuit board used is 1.6 mm thick and with Leadfree HASL surface treatment, make the pcb more eco-friendly. The outer and inner of the PCB is both 1 Oz / 35 µm.





Files Requested For PCB Assembly Quotation
---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required



Shinelink kinds PCBA product



SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated 0

Technical Support

- Professional Surface-mounting and Through-hole soldering Technology
- Various sizes like 1206,0805,0603 components SMT technology
- ICT(In Circuit Test),FCT(Functional Circuit Test) technology.
- PCB Board Assembly With UL,CE,FCC,Rohs Approval
- Nitrogen gas reflow soldering technology for SMT.
- High Standard SMT&Solder Assembly Line
- High density interconnected board placement technology capacity.



PCB Assembly Capabilities


Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files we need

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

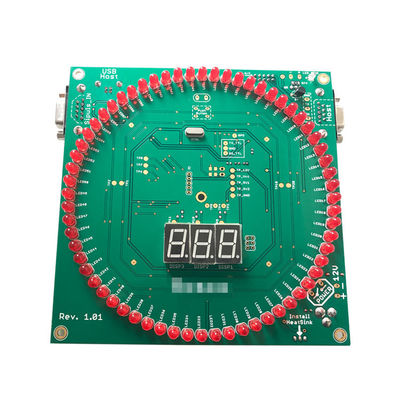

PCBA Picture

SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated 1SMT PCBA Printed Circuit Board Assembly 4 Layers Custom ISO/UL Certificated 2
