FR4 Turnkey PCB Assembly PCBA Double sided for OEM Medical equipment

FR4 Turnkey PCB Assembly PCBA Double sided for OEM Medical equipment

  • High Light

    circuit board assembly

    ,

    printed circuit board production

  • Min.Line Width
    0.075mm
  • Min.Hole Size
    0.2mm
  • Max. Unit Size
    620*813mm
  • Max. Board Thickness
    12mm
  • Min. Board Thickness
    0.3mm
  • Min. Trace Width
    0.075mm
  • Place of Origin
    China
  • Brand Name
    No
  • Certification
    UL,ROhs, CE
  • Model Number
    SL71214L002
  • Minimum Order Quantity
    1pc
  • Price
    USD1-10/PC
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    1000pcs per day

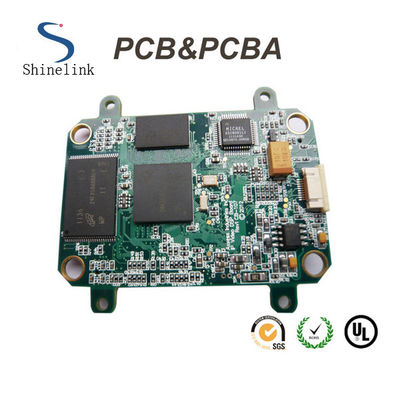

FR4 Turnkey PCB Assembly PCBA Double sided for OEM Medical equipment

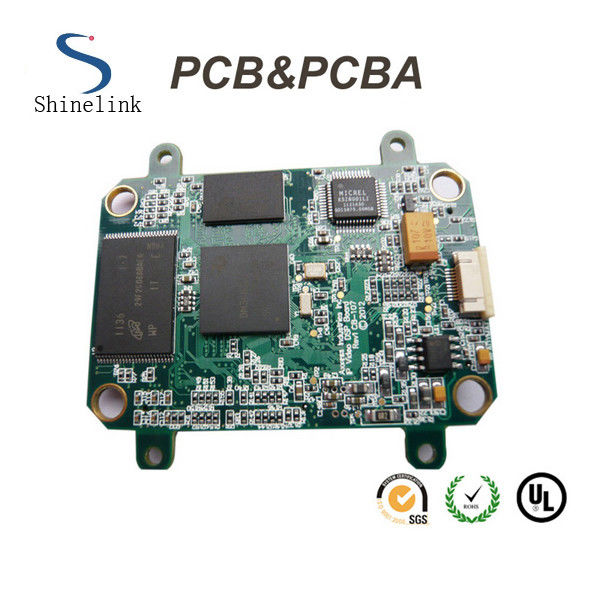

FR4 Turnkey PCB Assembly PCBA for OEM Medical equipment with double sided



If you want to make PCBA Board , We need detailed Terms for Pcb Assembly as following,



1. Gerber file and Bom list
2. Clear pics of pcba or pcba sample for us
3. Test method for PCBA



FR4 Turnkey PCB Assembly PCBA Double sided for OEM Medical equipment 0



Feature



Number of Layer 1 - 20 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer - 0.3MM ( 12 mil )
4 Layer - 0.4MM ( 16 mil )
6 Layer - 0.8MM ( 32 mil )
8 Layer - 1.0MM ( 40 mil)
10 Layer - 1.1MM ( 44 mil )
12 Layer - 1.3MM ( 52 mil )
14 Layer - 1.5MM ( 59 mil )
16 Layer - 1.6MM ( 63 mil )
18 Layer - 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 - 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
Flash Gold, Immersion Gold
Immersion Silver, Immersion Tin
Gold Finger, OSP





Advantage



1. ISO& UL certified third-party testing and high-quality technical service team.

2. Available and immediate delivery.

3. Producing capacity: 20,000sq meter/month.

4. Competitive price with no MOQ.





About us



Shinelink Technology Ltd is more than just a leading PCB manufacturer. We are capable of providing all PCB assembly needs inculding full turnkey and partial turnkey printed circuit board assembly services.



For full turn-key, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.



We has modernized its PCB assembly services to offer a one-stop, turn-key PCB assembly service which includes parts, fabrication and assembly - reducing production costs while improving quality and convenience.
