Payment & Shipping Terms:
|Based Material:||CEM-1||Fire Flame Class:||94v0|
|Suface Finish:||OSP||Max. Board Thickness:||12mm|
|Min. Board Thickness:||0.3mm||Min. Trace Width:||0.075mm|
turnkey pcb manufacturing,
printed circuit board production

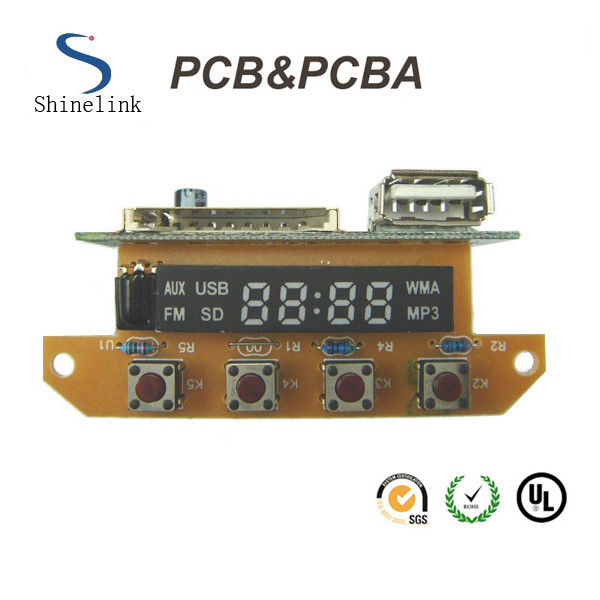

Through-hole Turnkey PCB Assembly electronic assembly with CEM-1 material
PCB Assembly Capabilities
|Turnkey PCBA||PCB+components sourcing+assembly+package|
|Assembly details||SMT and Thru-hole, ISO lines|
|Lead Time||Prototype: 15 work days. Mass order: 20~25 work days|
|Testing on products||Flying Probe Test, X-ray Inspection, AOI Test, functional test|
|Quantity||Min quantity: 1pcs. Prototype, small order, mass order, all OK|
|Files we need||PCB: Gerber files(CAM, PCB, PCBDOC)|
|Components: Bill of Materials(BOM list)|
|Assembly: Pick-N-Place file|
|PCB panel Size||Min size: 0.25*0.25 inches(6*6mm)|
|Max size: 20*20 inches(500*500mm)|
|PCB Solder Type||Water Soluble Solder Paste, RoHS lead free|
|Components details||Passive Down to 0201 size|
|BGA and VFBGA|
|Leadless Chip Carriers/CSP|
|Double-sided SMT Assembly|
|Fine Pitch to 0.8mils|
|BGA Repair and Reball|
|Part Removal and Replacement|
|Component package||Cut Tape,Tube,Reels,Loose Parts|
|Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing|
1. ISO& UL certified third-party testing and high-quality technical service team.
2. Available and immediate delivery.
3. Producing capacity: 20,000sq meter/month.
4. Competitive price with no MOQ.
Shinelink Technology Ltd is more than just a leading PCB manufacturer. We are capable of providing all PCB assembly needs inculding full turnkey and partial turnkey printed circuit board assembly services.
For full turn-key, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.
We has modernized its PCB assembly services to offer a one-stop, turn-key PCB assembly service which includes parts, fabrication and assembly - reducing production costs while improving quality and convenience.
1. What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products
2. Are my design files secure when I send them to you?
Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3. For small quantity orders, can you produce prototype PCBs?
Yes. Shinelink Technology Ltd has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.
4. Do you have an order minimum?
We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).
5. What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
