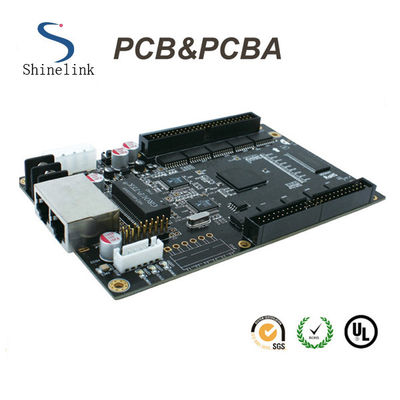

Automotive turnkey pcb assembly electronic pcba with clone service

Automotive turnkey pcb assembly electronic pcba with clone service

  • High Light

    turnkey pcb manufacturing

    ,

    printed circuit board production

  • Material
    TG FR4
  • Soldermask
    Black
  • Certificate
    UL,RoHS
  • Min,Lin Width
    0.075mm
  • Min.Lin Spacing
    0.075mm
  • Min.Hole Size
    0.2mm
  • Place of Origin
    China
  • Brand Name
    OEM/ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL71206L010
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    1000pcs per day

Automotive turnkey pcb assembly electronic pcba with clone service

Automotive turnkey pcb assembly electronic pcba with clone service



Quality First!

Customers First!

Making you more successful!



PCB Assembly services



SMT Assembly
Automatic Pick & Place
Component Placement as Small as 0201
Fine Pitch QEP - BGA
Automatic Optical Inspection




Through-hole Assembly


Wave Soldering
Hand Assembly and Soldering

Material Sourcing
IC pre-programming / Burning on-line

Function testing as requested

Aging test for LED and Power boards

Complete unit assembly (which including plastics, metal box, Coil, cable assembly etc)
Packing design





Testing and value added services:
AOI (Automatic optical inspection)
ICT(In-circuit test)
Reliability test
X-Ray Test
Analogue and digital function test
Firmware programming



PCB Assembly Capabilities



Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files we need PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCB assembly
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing





FAQ



1. What service can you provide?



We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products



2. Are my design files secure when I send them to you?



Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.



3. For small quantity orders, can you produce prototype PCBs?



Yes. Shinelink Technology Ltd has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.



4. Do you have an order minimum?



We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).



5. What file formats do you accept for PCB assembly?



Gerber and CAM Auto CAD DXF, DWG formats.





Advantage



1. ISO& UL certified third-party testing and high-quality technical service team.

2. Available and immediate delivery.

3. Producing capacity: 20,000sq meter/month.

4. Competitive price with no MOQ.
