Payment & Shipping Terms:
|Soldermask:||Back||Suface Finish:||Immersion Gold|
|PCB Type:||HDI PCB||Copper Thickness:||1OZ|
|Min.Line Width:||0.075mm||Min.hole Size:||0.2mm|
high density interconnect pcb,
hdi pcb design

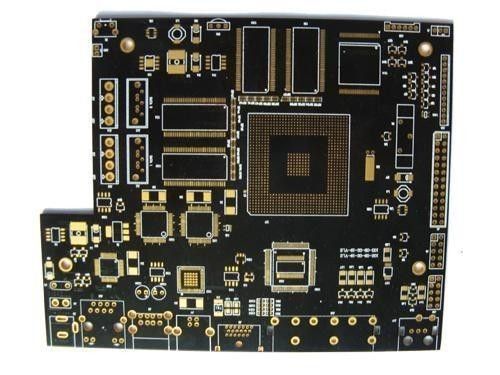

Black soldermask HDI PCB multilayer HDI with immersion gold manufacturer
Shinelink company is a professional Printed Circuit Board Manufacturer founded in Shenzhen China.
Shinelink Technology Ltd is more than just a leading PCB manufacturer. We are capable of providing all PCB assembly needs inculding full turnkey and partial turnkey printed circuit board assembly services.
For full turn-key, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.
We has modernized its PCB assembly services to offer a one-stop, turn-key PCB assembly service which includes parts, fabrication and assembly - reducing production costs while improving quality and convenience.
Quote Requirements For PCB and PCB Assembly
- Gerber File and Bom List.
- Quote Quantity.
- Technical requirements for quoting reference.
- Clear pictures of PCB or PCB Assembly sample if available.
- Inspection method for PCB Assembly.
1. For PCB and FPC.Qquotation within 1 hours if all information are clear
2. For PCBA. Quotation within 2 days if all information are clear
1. ISO and UL certified third-party testing and high-quality technical service team.
2. Available and immediate delivery.
3. Producing capacity: 20,000sq meter/month.
4. Competitive price with no MOQ.
|Number of Layer||1 - 20 Layer|
|Maximum Processing Area||680 × 1000MM|
|Min Board Thickness||2 Layer - 0.3MM ( 12 mil )|
|4 Layer - 0.4MM ( 16 mil )|
|6 Layer - 0.8MM ( 32 mil )|
|8 Layer - 1.0MM ( 40 mil)|
|10 Layer - 1.1MM ( 44 mil )|
|12 Layer - 1.3MM ( 52 mil )|
|14 Layer - 1.5MM ( 59 mil )|
|16 Layer - 1.6MM ( 63 mil )|
|18 Layer - 1.8MM ( 71 mil )|
|Finished Board Thickness Tolerance||Thickness ≤ 1.0MM, Tolerance: ± 0.1MM|
|1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%|
|Twisting and Bending||≤ 0.75%, Min: 0.5%|
|Range of TG||130 - 215 ℃|
|Impedance Tolerance||± 10%, Min: ± 5%|
|Hi-Pot Test||Max: 4000V/10MA/60S|
|Surface Treatment||HASL, With Lead, HASL Free Lead|
|Flash Gold, Immersion Gold|
|Immersion Silver, Immersion Tin|
|Gold Finger, OSP|
1. What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products
2. Are my design files secure when I send them to you?
Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3. For small quantity orders, can you produce prototype PCBs?
Yes. Shinelink Technology Ltd has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.
4. Do you have an order minimum?
We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).
5. What file formats do you accept for PCB assembly?
Gerber and CAM Auto CAD DXF, DWG formats.
Contact Person: Ms Xia
