Shinelink Company has been an industry leading FPC manufacturer since 2004.

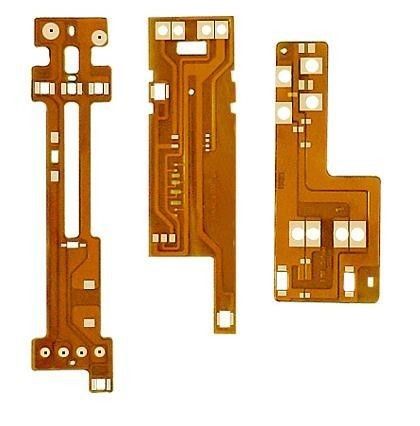

Main Products, Flex PCB (Flexible printed circuit), Rigid-Flex PCB.
| Items | FPC Process Capability |
| Number of Layers | Single Sided, Double Sided, Multilayer, Rigid-flex PCB |
| Based Material | PI, PET |
| Copper Thickness | 9um,12um,18um,35um,70um,105um |
| Largest Board Area | 406mm X 610mm/16"X 24",The largest could be 7 meters length in Single sided Flexible Printed Circuit Board |
| Minimum Hole Diameter of Mechanical Drilling | 0.2mm/0.008" |
| Minimum Hole Diameter of Laser Drilling | 0.075mm/0.03" |
| Minimum Hole Diameter of Hole-punching | 0.50mm/0.02" |
| Tolerance of Plated Through Hole | +/-0.05mm/±0.02" |
| Minimum Line Width | 0.075mm/0.003" |
| Minimum Line Spacing | 0.075mm/0.003" |
| Peel Strength | 1.2kg f/cm |
| Shape Processing | Die Stamping, Cutting, Laser Prototyping |
| Appearance of Tolerance | +/-0.05mm/ +/-0.02" |
| Solder Mask Type |
PI Solder Mask Coverlay Film or PET Solder Mask Covelay Film Lamination |
| Multi-colored Liquid Photo-Imageable solder Mask Ink, Thermosetting Solder Mask Ink | |
| Surface Treatment | Plating Tin, Immersion Tin, Plating Nickel Gold, ENIG (Electroless Nickel Immersion Gold),Immersion Nickel Gold, Chemical Nickel Gold,OSP( Organic Solderability Preservatives), Immersion Silver |
