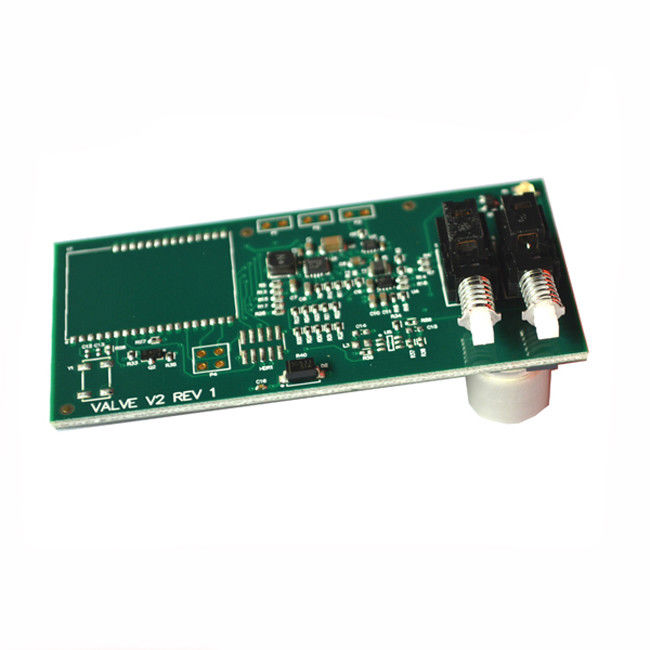

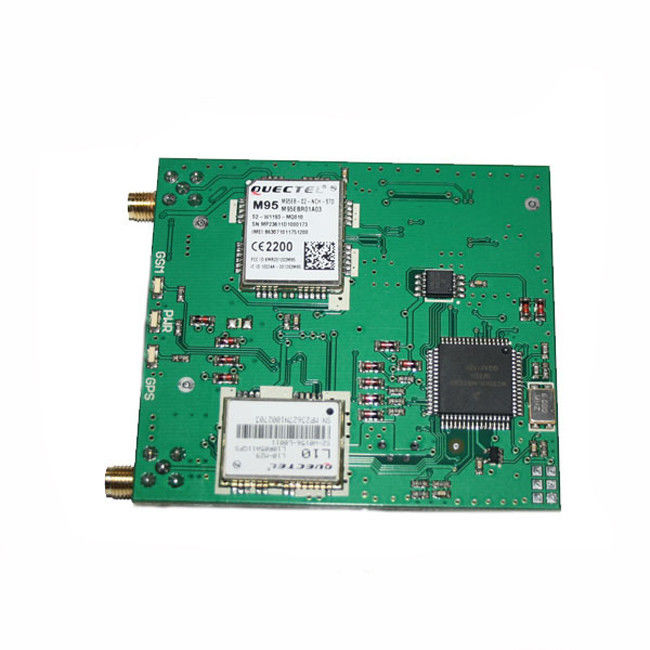

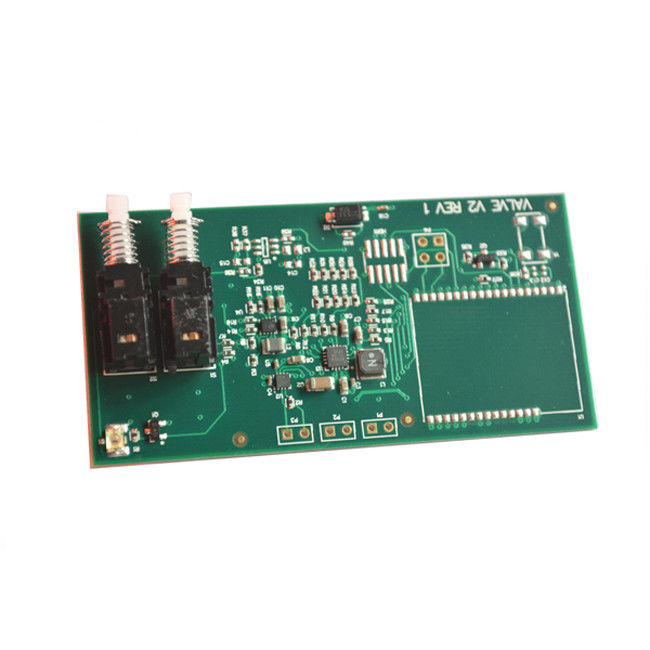

Gerber / PCB file Automotive 4 layers PCBA Board Green Printed circuit board Assembly
Shinelink has adapted and developed our capabilities and skill set to meet every customer requirement, from the manufacture of a selective item through to complete project management. With rich experience within pcb fabrication, components sourcing and pcb assembly service. As a professional pcb&pcba manufacturer, To reach the highest quality and most exacting standards is our mission.
Take advantage of our strength and experience and allow us to help you maintain your competitive edge. we are well positioned to support our customers through the entire product life cycle, from concept to volume production.
Files Requested For PCB Assembly Quotation
---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required
Shinelink kinds PCBA Product
|Number of Layer||1 - 20 Layer|
|Maximum Processing Area||680 × 1000MM|
|Min Board Thickness||2 Layer - 0.3MM ( 12 mil )|
|4 Layer - 0.4MM ( 16 mil )|
|6 Layer - 0.8MM ( 32 mil )|
|8 Layer - 1.0MM ( 40 mil)|
|10 Layer - 1.1MM ( 44 mil )|
|12 Layer - 1.3MM ( 52 mil )|
|14 Layer - 1.5MM ( 59 mil )|
|16 Layer - 1.6MM ( 63 mil )|
|18 Layer - 1.8MM ( 71 mil )|
|Finished Board Thickness Tolerance||Thickness ≤ 1.0MM, Tolerance: ± 0.1MM|
|1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%|
|Twisting and Bending||≤ 0.75%, Min: 0.5%|
|Range of TG||130 - 215 ℃|
|Impedance Tolerance||± 10%, Min: ± 5%|
|Hi-Pot Test||Max: 4000V/10MA/60S|
|Surface Treatment||HASL, With Lead, HASL Free Lead|
|Flash Gold, Immersion Gold|
|Immersion Silver, Immersion Tin|
|Gold Finger, OSP|
PCB Assembly Capabilities
|Turnkey PCBA||PCB+components sourcing+assembly+package|
|Assembly details||SMT and Thru-hole, ISO lines|
|Lead Time||Prototype: 15 work days. Mass order: 20~25 work days|
|Testing on products||Flying Probe Test, X-ray Inspection, AOI Test, functional test|
|Quantity||Min quantity: 1pcs. Prototype, small order, mass order, all OK|
|Files we need||PCB: Gerber files(CAM, PCB, PCBDOC)|
|Components: Bill of Materials(BOM list)|
|Assembly: Pick-N-Place file|
|PCB panel Size||Min size: 0.25*0.25 inches(6*6mm)|
|Max size: 20*20 inches(500*500mm)|
|PCB Solder Type||Water Soluble Solder Paste, RoHS lead free|
|Components details||Passive Down to 0201 size|
|BGA and VFBGA|
|Leadless Chip Carriers/CSP|
|Double-sided SMT Assembly|
|Fine Pitch to 0.8mils|
|BGA Repair and Reball|
|Part Removal and Replacement|
|Component package||Cut Tape,Tube,Reels,Loose Parts|
|Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing|
1. What service can you provide?
We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products
2. Are my design files secure when I send them to you?
Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.
3. How do O-Leading keep your price competitive?
Over the last decade, prices of many raw materials (e.g. copper, chemicals) had doubled, tripled or quadrupled; Chinese currency RMB had appreciated 31% over US dollar; And our labor cost also increased significantly.
However, O-Leading have kept our pricing steady. This owns entirely to our innovations in reducing cost, avoiding wastes and improving efficiency. Our prices are very competitive in the industry at the same quality level.
We believe in a win-win partnership with our customers. Our partnership will be mutually beneficial if we can provide you an edgeon cost and quality.
4. What kinds of boards can O-Leading process?
Common FR4, high-TG and halogen-free boards, Rogers, Arlon, Telfon, aluminum/copper-based boards, PI, etc.
Contact Person: Ms Xia
