High TG PCBA FR4 Printed Circuit Board Assembly Thick Coppoer
Detail Specifications:
|
Layers |
6 |
|
Material |
FR-4 High Tg |
|
Board Thickness |
1.6mm |
|
Copper Thickness |
3oz |
|
Surface Treatment |
ENIG 2U" |
|
Soldmask and Silkscreen |
Green and White |
|
Quality Standard |
IPC Class 2, 100% E-testing |
|
Certificates |
TS16949, ISO9001, UL, RoHS |
What Shinelink Company can do for you:
PCB manufacturing (prototype, small to medium, mass production)
Components Sourcing
PCB Assembly/SMT/DIP
To get a full quotation of the PCB/PCBA, pls provide the information as below:
Gerber File, with detail specification of the PCB
BOM List (Better with excel fomart)
Photoes of the PCBA (If you have done this PCBA before)
Shinelink kinds PCBA Product
Manufacturer Capacity:
|
Capacity |
Double Sided: 12000 sq.m / month |
|
Min Line Width/Gap |
4/4 mil (1mil=0.0254mm) |
|
Board Thickness |
0.3~4.0mm |
|
Layers |
1~20 layers |
|
Material |
FR-4, Aluminum, PI |
|
Copper Thickness |
0.5~4oz |
|
Material Tg |
Tg140~Tg170 |
|
Max PCB Size |
600*1200mm |
|
Min Hole Size |
0.2mm (+/- 0.025) |
|
Surface Treatment |
HASL, ENIG, OSP |

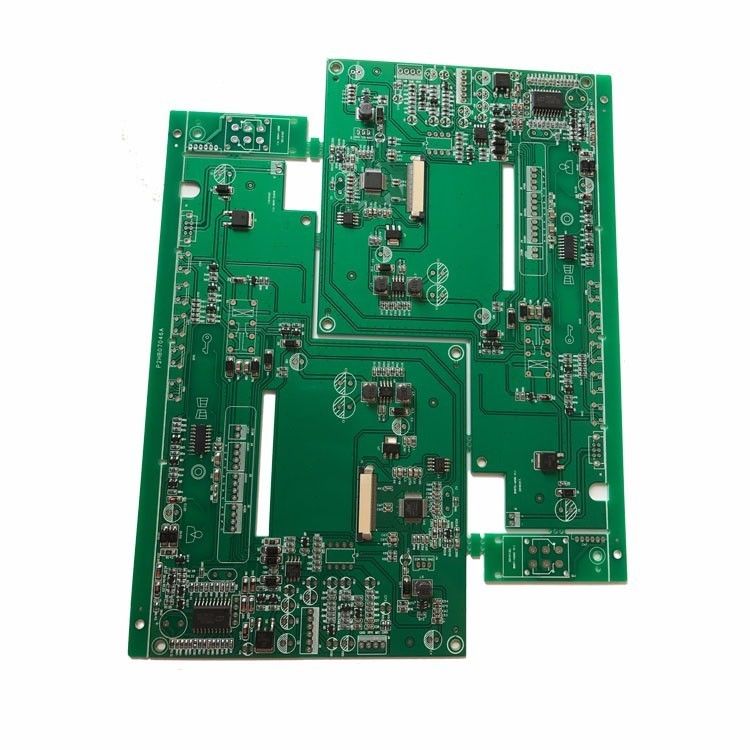

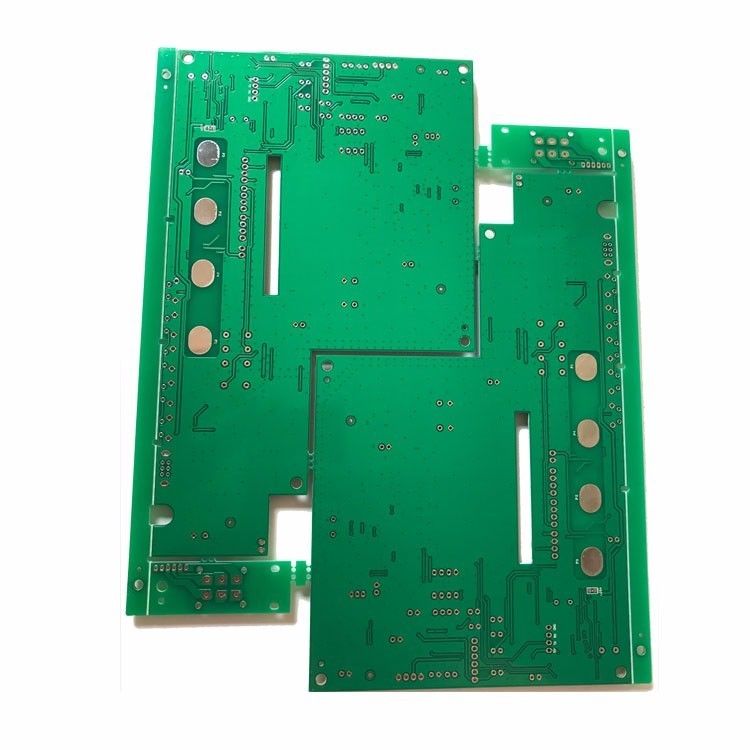

PCBA Picture
Our products are sold all over the world, you can rest assured.
