Custom PCBA Board Fabrication Circuit Board Pcb Assembly Sourcing Components

Custom PCBA Board Fabrication Circuit Board Pcb Assembly Sourcing Components

  • High Light

    pcb board assembly

    ,

    pcb assembly services

  • Solermask
    Black
  • Components
    Sourcing
  • SMT DIP Assembly
    Support
  • Features 1
    Gerber/PCB File Needed
  • Features 2
    100% E-test
  • Features 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL81023S003
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    100000pcs per day

Custom PCBA Board Fabrication Circuit Board Pcb Assembly Sourcing Components

Custom PCBA fabrication circuit board pcb assembly and design service





Files Requested For PCB Assembly Quotation


---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required





Shinelink kinds PCBA Products



Custom PCBA Board Fabrication Circuit Board Pcb Assembly Sourcing Components 0



Features of acquisition module circuit board



1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. FR4 Material, Meet 94V0 standard

4. SMT, DIP technology suport

5. Lead Free HASL, Environmental Protection

6. UL, CE, ROHS Compliant

7. Shipping By DHL,UPS, TNT, EMS or Customer requirement





Module circuit boardTechnical capability



SMT Position accuracy:20 um
Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP
Max. component height::25mm
Max. PCB size:680×500mm
Min. PCB size:no limited
PCB thickness:0.3 to 6mm
PCB weight:3KG
Wave-Solder Max. PCB width:450mm
Min. PCB width: no limited
Component height:Top 120mm/Bot 15mm
Sweat-Solder Metal type :part, whole, inlay, sidestep
Metal material:Copper , Aluminum
Surface Finish:plating Au, plating sliver , plating Sn
Air bladder rate:less than20%
Press-fit Press range:0-50KN
Max. PCB size:800X600mm
Testing ICT,Probe flying,burn-in,function test,temperature cycling

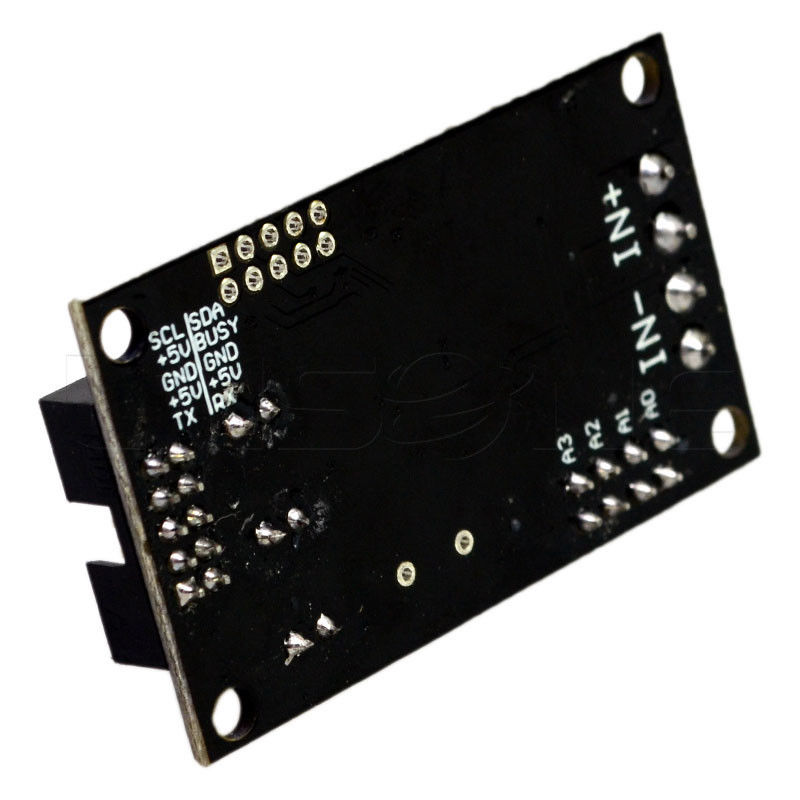

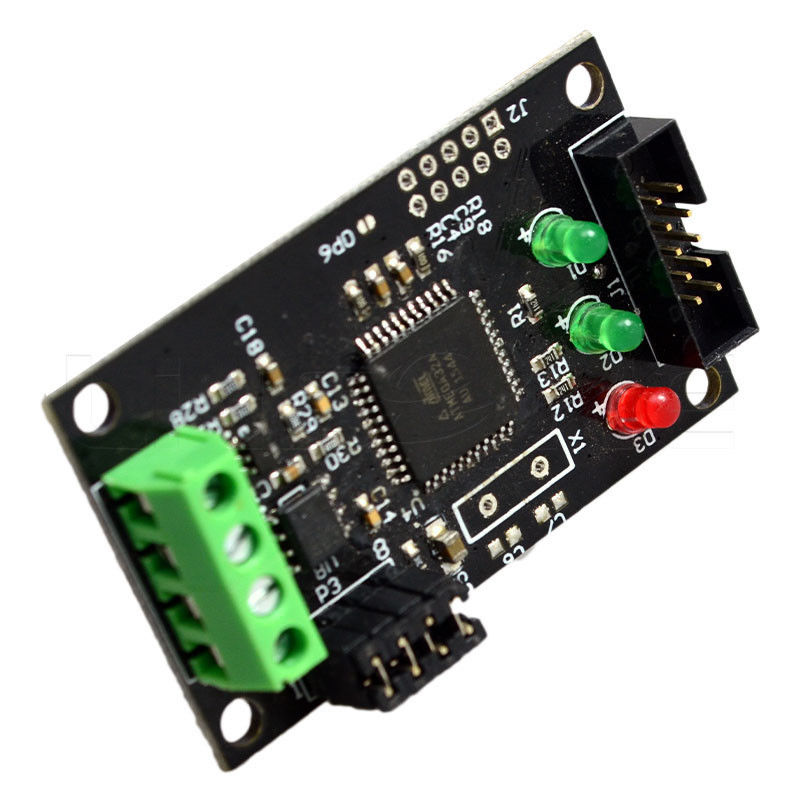

PCBA Picture



Custom PCBA Board Fabrication Circuit Board Pcb Assembly Sourcing Components 1
