6 Layers Blind Hole Prototype Circuit Board , Gold Finger PCB Assembly Services

6 Layers Blind Hole Prototype Circuit Board , Gold Finger PCB Assembly Services

  • High Light

    prototype pcb board

    ,

    electronics prototyping board

  • Layer
    6 Layers
  • Min.Hole Size
    0.15mm Blind Hole
  • Surface
    Gold Finger
  • Features 1
    Gerber/PCB File Needed
  • Features 2
    100% E-test
  • Features 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL81104S10
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000pcs per day

6 Layers Blind Hole Prototype Circuit Board , Gold Finger PCB Assembly Services

6 layer blind hole PCB Prototype FR4 pcb board Gold finger PCB





6 layer fr4 pcb board with bilnd hole



1. ONE-STOP-SERVICE

2. OEM service

3. Gerber file needed

4. PCB clone with sample

5. Quality guarantee and professional after-sell service




Our Services



Our Production Capability for PCB / PWB

  • Layer: 1 to 18 layers

  • Material type: FR-4, CEM-1, CEM-3, High TG, FR4 Halogen Free, Rogers

  • Board thickness: 0.21mm to 7.0mm

  • Copper thickness: 0.5 OZ to 7.0 OZ

  • Copper thickness in hole: >25.0 um (>1mil)

- Max. Board Size: 23 × 25 (580mm×900mm)
- Min. Drilled Hole Size: 3mil (0.075mm)
- Min. Line Width: 3mil (0.075mm)
- Min. Line Spacing: 3mil (0.075mm)

  • Surface finishing: HASL / HASL lead free, HAL, Chemical tin, Chemical Gold, Immersion Silver/Gold, OSP, Gold plating

  • Solder Mask Color: Green/Yellow/Black/White/Red/Blue

  • Tolerance

- Shape tolerance: ±0.13
- Hole tolerance: PTH: ±0.076 NPTH: ±0.05





PCB Packing



- Inner packing: Vacuum packing / Plastic bag
- Outer packing: Standard carton packing

  • Certificate: UL, ISO 9001, ISO 14001

  • Special requirements: Buried and blind vias+controlled impedance +BGA

  • Profiling: Punching, Routing, V-CUT, Beveling

  • Provides OEM services to all sorts of printed circuit board assembly as well as electronic encased products.



PCB Capacity



Item

Capability---Technology

Standard

IPC-A-610 E Class II-III

Laminate/Base Material

FR-4 / PI (FPC) / High TG FR-4 / Halogen Free material/Rogers/Arlon/

Taconic/Teflon/CEM-3/PTFE/Aluminum /BT

Layers

1-18

Finised inner/outer copper thickness

1-6 OZ

Board Thinkness

0.2-5.0mm



Min hole size

Mechanical hole: 0.15mm

Laser hole: 0.1mm

Min line width/space

0.075mm/0.075mm

Min line Gap

+/-10%

Aspect Ratio

12:1

Controlled Impedance

<= +/-10%

Solder Mask Color

Green,Blue,Black,White,Yellow,Red,Grey,Purple etc..

Outline profile

Rout/ V-cut/ Bridge/ Stamp hole

Surface treatment

HASL, HASL lead free, Immersion Gold,ENEPIG, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP...

Tolerance of dimension size

+/-0.1mm

Capacity

35000sq/Month

CAM Capability

40 item

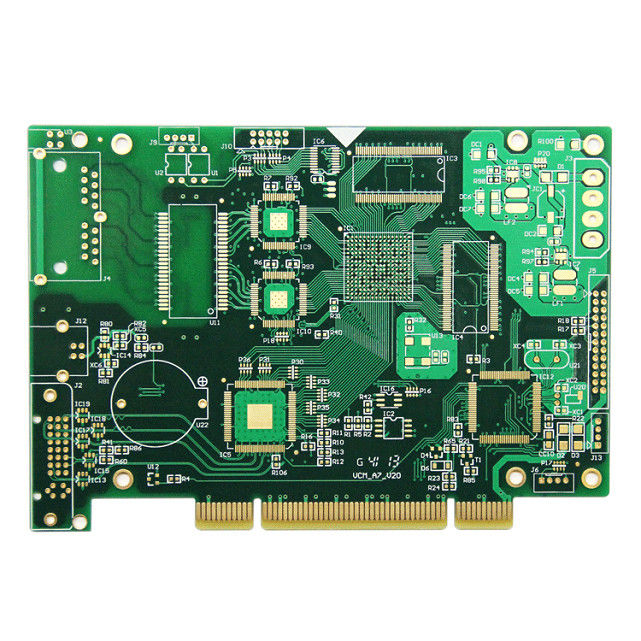

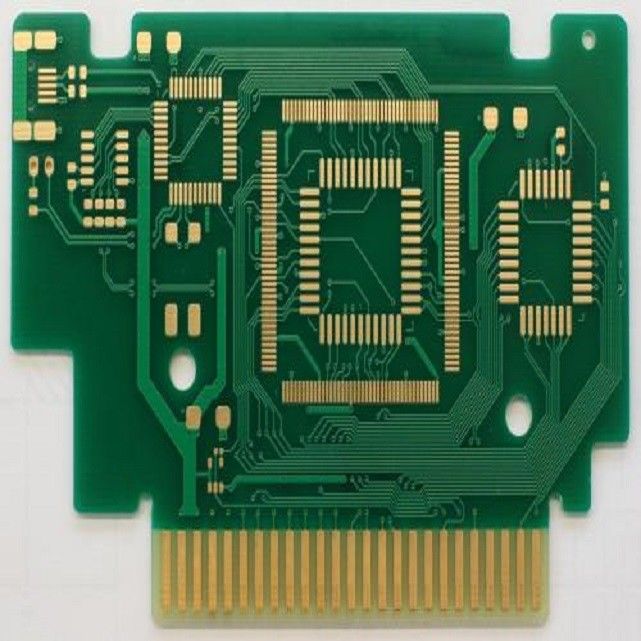

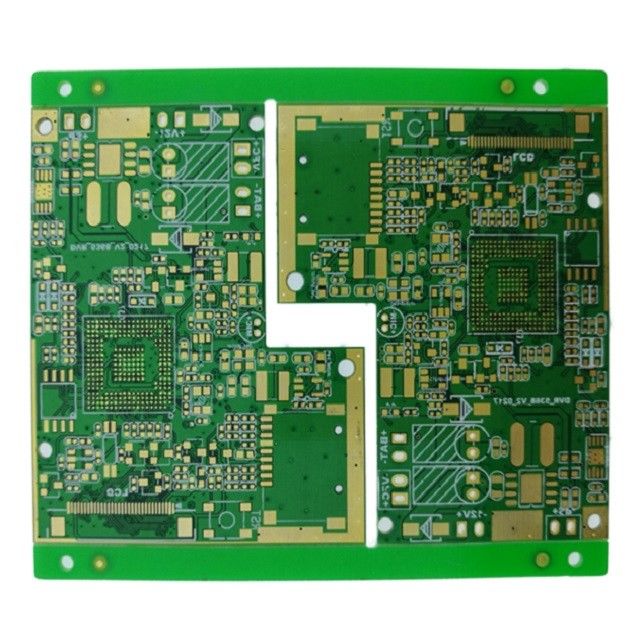

PCB Photos
