Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan

Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan

  • High Light

    pcb board assembly

    ,

    pcb assembly services

  • Tolerance
    ±10%
  • Product Name
    PCBA Board
  • Twist&Wrap
    ≤ 0.5%
  • Features 1
    Gerber/PCB File Needed
  • Features 2
    100% E-test
  • Features 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL81107S01
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    100000pcs per day

Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan

Custom-made PCBA Board Sample pcb board OEM/ODM smart watch pcba





Quote requirement



1. Gerber file of the bare PCB board

2. BOM (Bill of material) for assembly

3. To short the lead time, please kindly advise us if there is any acceptable components substitution.

4. Testing Guide & Test Fixtures if necessary

5. Programming files & Programming tool if necessary

6. Schematic if necessary





Shinelink kinds PCBA Product



Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan 0




94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:



1.Single side wave soldering

2.SMT & THT mixture process

Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan 1




PCB Assembly Capabilities


Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files we need

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing





Our Services



1.Our professional engineer can provide PCB design, BOM.

2.Quick and econimic delivery term.

3.Provide PCB and PCBA prototype, and medium and low volumn quick board services.

4.Component purcharsing, SMT and PCBA one-stop source.

5.Two-hours quote response, 24 hours quick-turn produce.

6.FR4 Double-sided and Alum single-sided sample in 24 hours.

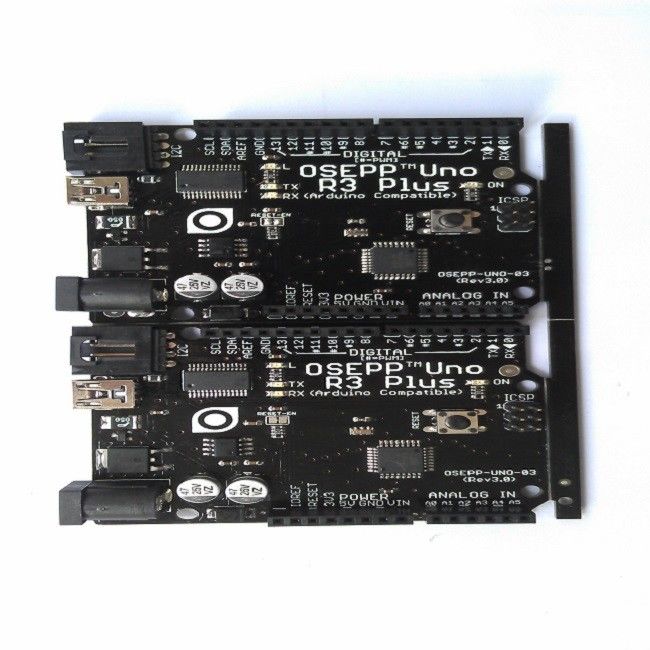

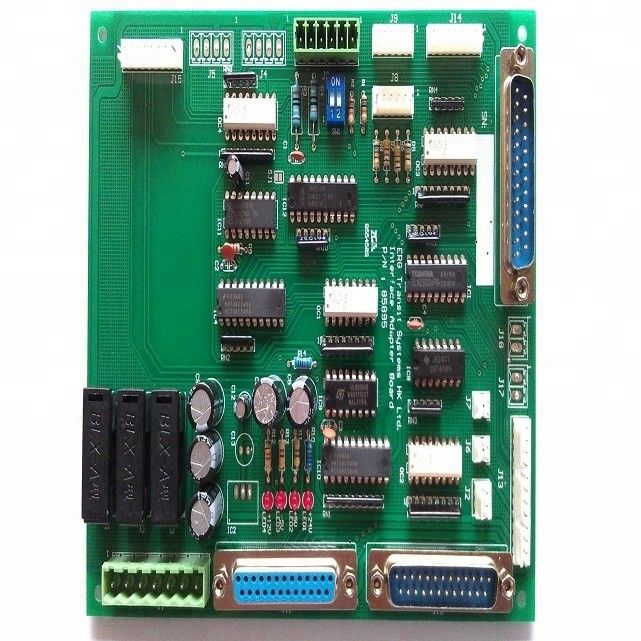

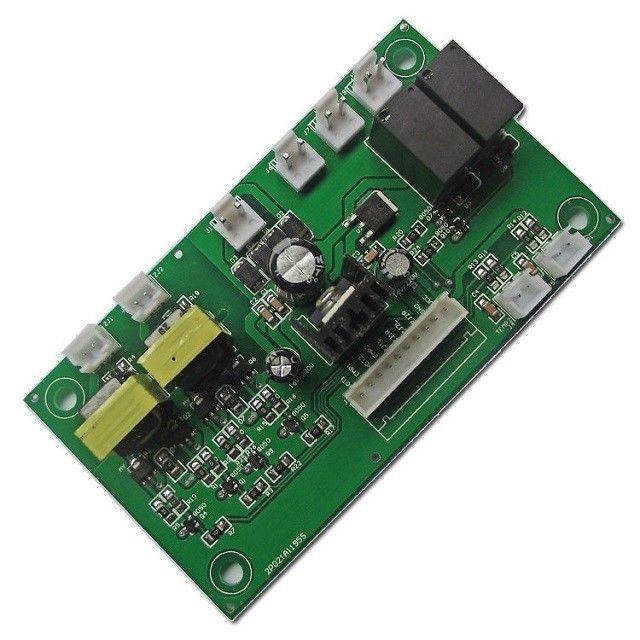

PCBA Picture

Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan 2Custom PCBA Board , FR4 Double Sided Prototype PCB Board 10% Tolerance Long Lifespan 3
