Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly

Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly

  • High Light

    pcb board assembly

    ,

    pcb assembly services

  • Base Material
    FR-4 Epoxy Resin
  • Min.Hole Size
    0.25mm
  • Min.Line Width
    0.75mm
  • Features 1
    Gerber/PCB File Needed
  • Features 2
    100% E-test
  • Features 3
    Quality 2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL81203S004
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    100000pcs per day

Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly

pcb manufacturer custom design firmware and pcba electronic assembly


Files Requested For PCB Assembly Quotation
---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required



Shinelink kinds PCBA Product

Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly 0


94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:


1.Single side wave soldering
2.SMT & THT mixture process
Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly 1

PCB Assembly Capabilities


Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files we need

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

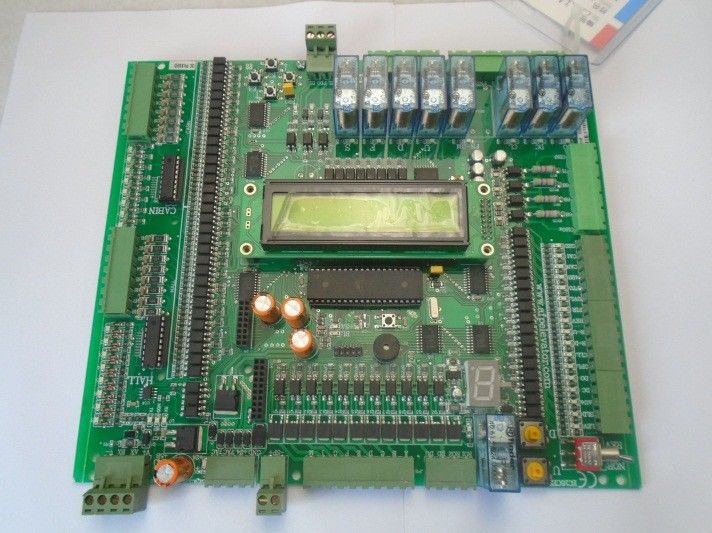

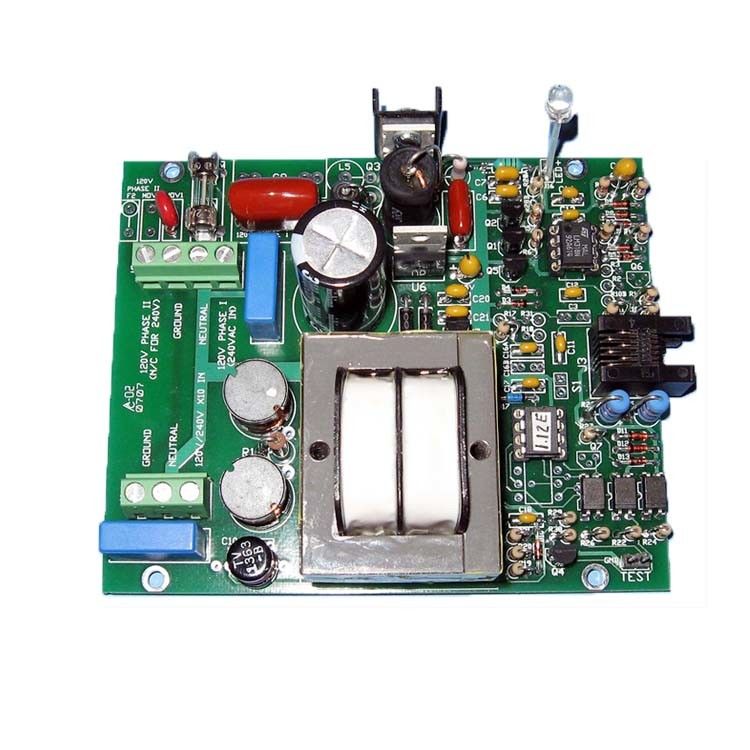

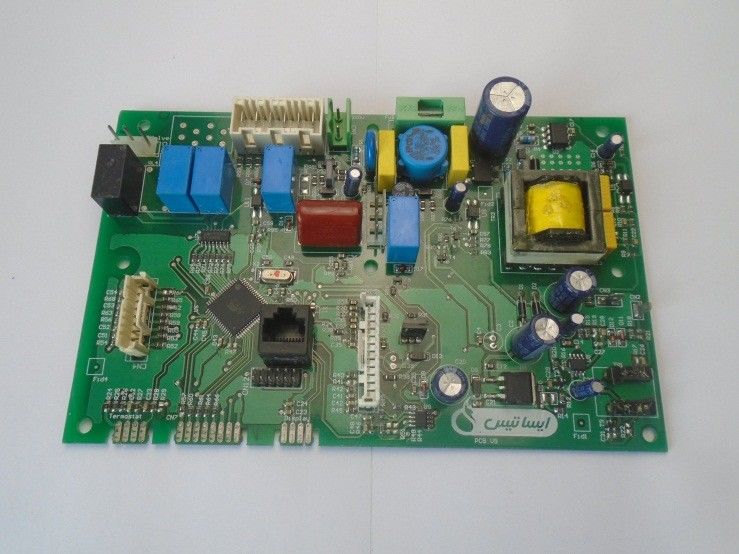

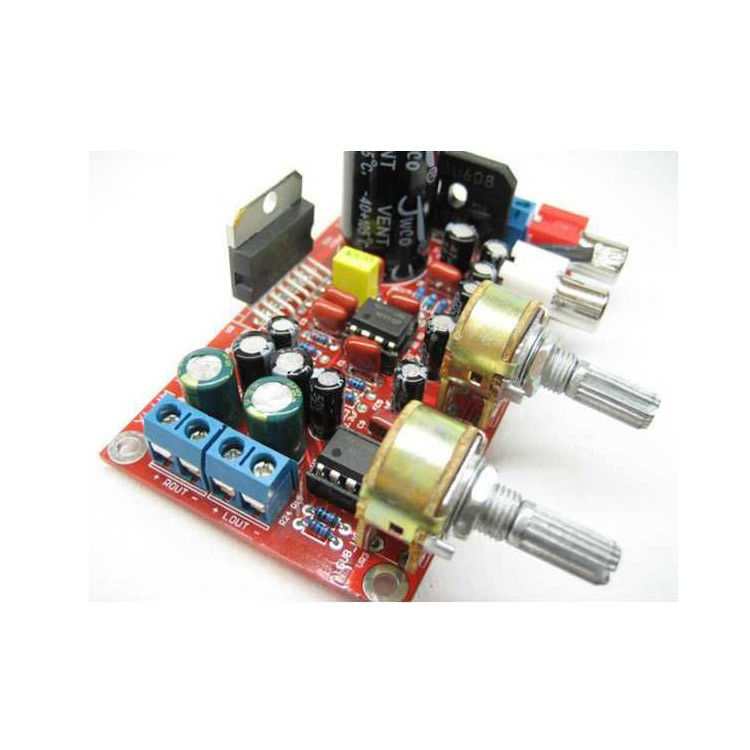

PCBA Picture

Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly 2Custom PCBA Board FR-4 Epoxy Resin Material Firmware / Pcba Electronic Assembly 3
