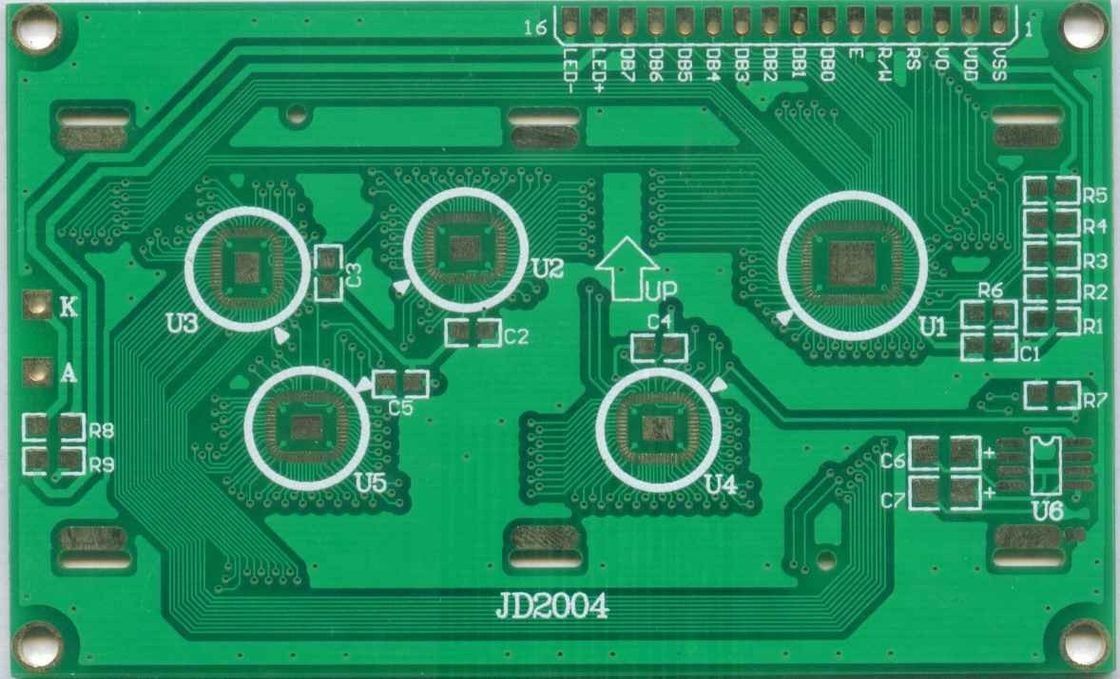

HDI heavey copper pcb , 2oz coper pcb prototype with fast delviery

HDI heavey copper pcb , 2oz coper pcb prototype with fast delviery

  • High Light

    copper circuit board

    ,

    copper pcb board

  • PCB Type
    HDI PCB
  • Copper Thickness
    2OZ
  • Soldermask
    Green
  • Feature
    Gerber File Needed
  • Certificate
    UL,RoHS
  • Max.size
    620*813mm
  • Place of Origin
    China
  • Brand Name
    No
  • Certification
    UL, Rohs
  • Model Number
    SL71212L004
  • Minimum Order Quantity
    1pc
  • Price
    Negotiation
  • Packaging Details
    ESD bag
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram, Paypal
  • Supply Ability
    10000pcs/ day

HDI heavey copper pcb , 2oz coper pcb prototype with fast delviery

Green soldemask heavey copper pcb double sided copper clad board





PCB capability and services


1. Single-sided, double side and multi-layer PCB. FPC. Flex-Rigid PCB with competitive price, good quality and excellent service.
2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material, Polyimide, etc.
3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment.
4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
5. Quantities range from Sample to mass order
6.100% E-Test
7. Qualified for CE and RoHS certificate



PCB Feature



Number of Layer 1 - 20 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer - 0.3MM ( 12 mil )
4 Layer - 0.4MM ( 16 mil )
6 Layer - 0.8MM ( 32 mil )
8 Layer - 1.0MM ( 40 mil)
10 Layer - 1.1MM ( 44 mil )
12 Layer - 1.3MM ( 52 mil )
14 Layer - 1.5MM ( 59 mil )
16 Layer - 1.6MM ( 63 mil )
18 Layer - 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 - 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
Flash Gold, Immersion Gold
Immersion Silver, Immersion Tin
Gold Finger, OSP



Quick Leadtime


Lead time for sample
2-3 days for single-sided board
4-5 days for double-sided board
6-7 days for multilayer board
24-48 hours for urgent
Lead time or opening Mould:
3-5 days for normal mould
5-7 days for hard mould
Lead time for mass production
5-7 days for single/double sided board
7-10 days for multilayer board


PCBA capability and services SMT (Surface mounting technology), COB, DIP.


1. Material Sourcing Service
2. SMT assembly and Through hole components insertion
3. IC pre-programming / Burning on-line
4. Function testing as requested
5. Complete Unit assembly (which including plastics, metal box, Coil, cable inside etc)
6. OEM/ODM also welcomed

What we need


1. Gerber files of the bare PCB
2. Bill of materials to include: Manufacturer's part number, type of part, type of packaging, component locations listed by reference designators and quantity
3. Dimensional specifications for non-standard components
4. Assembly drawing, including any change notices
5. Final test procedures (if available)

Packing Terms


1. Inner packing. All the goods will be packed by vacuum
2. Outer packing. Standard carton
