Unlocked ME906E+M.2 to USB Adapter include SIMFDD LTE 4G WCDMA GSM

China Unlocked ME906E+M.2 to USB Adapter include SIMFDD LTE 4G WCDMA GSM supplier

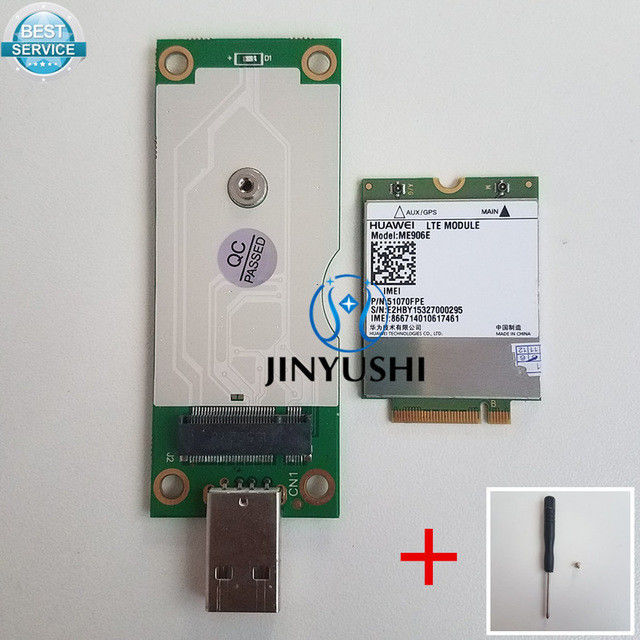

Large Image :  Unlocked ME906E+M.2 to USB Adapter include SIMFDD LTE 4G WCDMA GSM

Product Details:

Place of Origin: China
Brand Name: Huawei
Certification: CE, FCC
Model Number: ME906E

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD59.99/PC
Packaging Details: Inner package: Vacuum package+dryer Outer package:Carton package+Bulb package
Delivery Time: 3 work days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000PCS in stock
Contact Now
Detailed Product Description
Model Number: ME906E Interface Type: M.2 NGFF
Type: Wireless Package: Yes
Products Status: Stock Operating Temperature: 100% New Original

Unlocked ME906E+M.2 to USB Adapter include SIMFDD LTE 4G WCDMA GSM




ME906E Series LTE M.2 Module



General Features



LTE (FDD) B1/B2/B3/B5/B7/B8/B20

Quad-band DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

Quad-band EDGE/ GPRS/GSM 1900/1800/900/850 MHz



Receive diversity



DC-HSPA+/HSPA+/HSPA/UMTS B1/B2/B5/B8

MIMO LTE: DL 2*2 MIMO

Max. transmitter power

WCDMA/HSPA+:+24dBm (Power Class 3)

GSM/GPRS 1900MHz/1800MHz: +30dBm (Power Class 1)

GSM/GPRS 900M/850MHz: +33dBm (Power Class 4)

EDGE 1900MHz/1800MHz: +26dBm (Power Class E2)

EDGE 900M/850MHz: +27dBm (Power Class E2)

LTE:Accorded with 3GPP TS 36.101 R8 Class 3(23dBm)

Control via AT commands

3GPP TS 27.007 and TS 27.005

extended AT command



SIM card supply voltage



1.8V/3.0 V UICC (SIM/UICC/UIM), ISIM supported

Supply voltage range

3.135V~4.4V (3.3 V recommended)



Temperature range



Normal operation: -10°C to +55°C

Extended operation: -20°C to +70°C

Storage: -40°C to +85°C

Humidity: 5% - 95%

Dimensions: 42 mm x 30 mm x 2.3 mm

Weight: <6g

OS: Windows 7 / Windows 8 / Android 4.0



Data Features



GPRS/EDGE: Multi-slot Class 12

WCDMA PS: UL (384 kbps)/ DL (384 kbps)

DC-HSPA+ :UL (5.76 Mbps)/DL (42 Mbps)

LTE FDD: UL (50 Mbps)/ DL (100 Mbps) @Bandwidth 20M (CAT3)

SMS Features

Supporting MO and MT

Supporting formats of PDU

Point-to-point and cell broadcast

Interfaces

Antenna interfaces x 2

M.2 Socket 2

USB 2.0 interface high speed

Power supply

UICC interface



Approvals and Certifications

CE

FCC

GCF

RoHS Compliant/ Halogen free

Operator TA: Vodafone, Telefonica, Telstra, TMO
