PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant

PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant
PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant

Large Image :  PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant Get Best Price

Product Details:

Place of Origin: China
Brand Name: OEM/ODM
Certification: UL,RoHS, CE
Model Number: SL80826S001

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: ESD package
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 1000pcs per day
Detailed Product Description
SMT DIP Assembly: Support Type: SMT Assembly
Product Name: PCBA Features 1: Gerber/PCB File Needed
Features 2: 100% Testing Features 3: 2 Years Guarantee
High Light:

circuit board assembly

,

printed circuit board production

PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant





Assembly



1. Features



1. One Stop OEM Service, Made in Shenzhen of China

2. Manufactured by Gerber File and BOM List from Customer

3. FR4 Material, Meet 94V0 standard

4. SMT, DIP technology suport

5. Lead Free HASL, Environmental Protection

6. UL, CE, ROHS Compliant

7. Shipping By DHL,UPS, TNT, EMS or Customer requirement





2. PCBA Technical capability





SMT

Position accuracy:20 um

Components size:0.4×0.2mm(01005) —130×79mm,Flip-CHIP,QFP,BGA,POP

Max. component height::25mm

Max. PCB size:680×500mm

Min. PCB size:no limited

PCB thickness:0.3 to 6mm

PCB weight:3KG

Wave-Solder

Max. PCB width:450mm

Min. PCB width: no limited

Component height:Top 120mm/Bot 15mm

Sweat-Solder

Metal type :part, whole, inlay, sidestep

Metal material:Copper , Aluminum

Surface Finish:plating Au, plating sliver , plating Sn

Air bladder rate:less than20%

Press-fit

Press range:0-50KN

Max. PCB size:800X600mm

Testing

ICT,Probe flying,burn-in,function test,temperature cycling

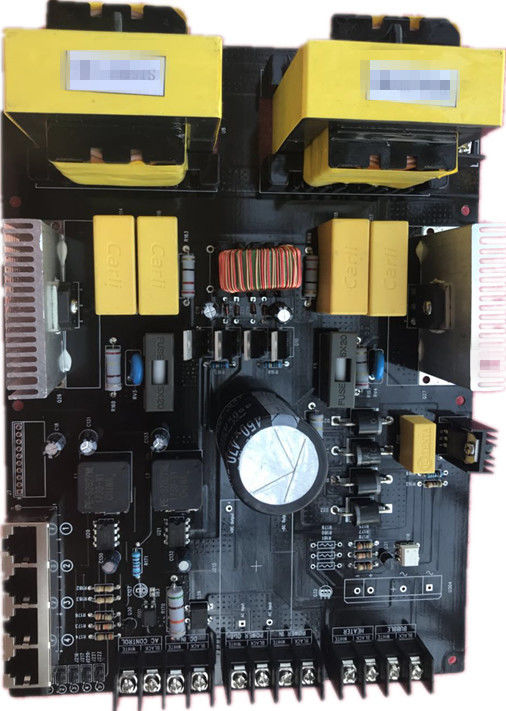

3. PCBA Picture



PCB PCBA Turnkey PCB Assembly 0.3-6mm Thickness UL ROHS Compliant 0
