2 Layers PCBA PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card

China 2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card supplier
2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card supplier 2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card supplier 2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card supplier

Large Image :  2 Layers PCBA PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card

Product Details:

Place of Origin: China
Brand Name: OEM and ODM
Certification: UL,RoHS, CE
Model Number: SL81107S03

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: ESD package
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 100000pcs per day
Contact Now
Detailed Product Description
Number Of Layer: 2 Layers Base Material: FR4
Copper Thickness: 1OZ Features 1: Gerber/PCB File Needed
Features 2: 100% E-test Features 3: Quality 2 Years Guarantee

PCB PCBA GPS GSM Tracker Digital SIM Card OEM PCBA Circuit Board





Files Requested For PCB Assembly Quotation


---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we ask that you provide us with the following information.
1. Gerber file,PCB file,Eagle file or CAD file are all acceptable
2. A detailed bill of materials (BOM)
3. Clear pictures of PCB or PCBA sample for us
4. Quantity and delivery required
5. Test method for PCBA to guarantee 100% good quality products.
6. Schematics file for PCB design if need to do function test.
7. A sample if available for better sourcing
8. CAD files for enclosure manufacturing if required
9. A complete wiring and assembly drawing showing any special assembly instructions if required





Shinelink kinds PCBA Products



2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card





Main Production Equipment (8 SMT LINE 3DIP LINE)



ITEM

Device Name

Model

Brand Name

Qty

Remarks

1

Full Automatic Screen Printer

DSP-1008

DESEN

8



2

SMT Machine

YG200

YAMAHA

5



8 SMT Line

3

SMT Machine

YV100XG

YAMAHA

3

4

SMT Machine

YG100XGP

YAMAHA

19

5

SMT Machine

YV88

YAMAHA

5

6

Reflow Soldering

8820SM

NOUSSTAR

4



7

Reflow Soldering

XPM820

Vitronics Soltec

3



8

Reflow Soldering

NS-800 II

JT

1



9

Solder Paste Inspection

REAL-Z5000

REAL

1



10

Automatic Optical Inspection System

B486

VCTA

3



11

Automatic Optical Inspection System

HV-736

HEXI

5



11

X-Ray

AX8200

UNICOMP

1



12

Universal 4*48-pindrive concurrent multiprogramming system

Beehive204

ELNEC

3



13

Automatic Plug-In machines

XG-3000

SCIENCGO

2



14

Automatic wave soldering system

WS-450

JT

1

3 DIP LINE

15

Automatic wave soldering system

MS-450

JT

2




94V0 PCBA manufacture Scale capabilities up to

We combine advanced processes with highly skilled resources. Keeping up with the leading advanced technology and management system in One-stop services of PCB assembly

SMT process (RoHs Compliant) Capabilities up to:

1. 0201 Chip Size
2. 12 mils Integrated Circuit (IC) Pitch
3. Micro Ball Grid Array (BGA) – Pitch 16 mils
4. Flip Chip (Controlled Collapse Chip Connection) – Pitch 5 mils
5. Quad Flat Package (QFP) – Pitch 12 mils

THT(Wave soldering) process (RoHs Compliant) Capabilities up to:



1.Single side wave soldering

2.SMT & THT mixture process

2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card




PCB Assembly Capabilities


Turnkey PCBA

PCB+components sourcing+assembly+package

Assembly details

SMT and Thru-hole, ISO lines

Lead Time

Prototype: 15 work days. Mass order: 20~25 work days

Testing on products

Flying Probe Test, X-ray Inspection, AOI Test, functional test

Quantity

Min quantity: 1pcs. Prototype, small order, mass order, all OK

Files we need

PCB: Gerber files(CAM, PCB, PCBDOC)

Components: Bill of Materials(BOM list)

Assembly: Pick-N-Place file

PCB panel Size

Min size: 0.25*0.25 inches(6*6mm)

Max size: 20*20 inches(500*500mm)

PCB Solder Type

Water Soluble Solder Paste, RoHS lead free

Components details

Passive Down to 0201 size

BGA and VFBGA

Leadless Chip Carriers/CSP

Double-sided SMT Assembly

Fine Pitch to 0.8mils

BGA Repair and Reball

Part Removal and Replacement

Component package

Cut Tape,Tube,Reels,Loose Parts

PCB assembly
process

Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing

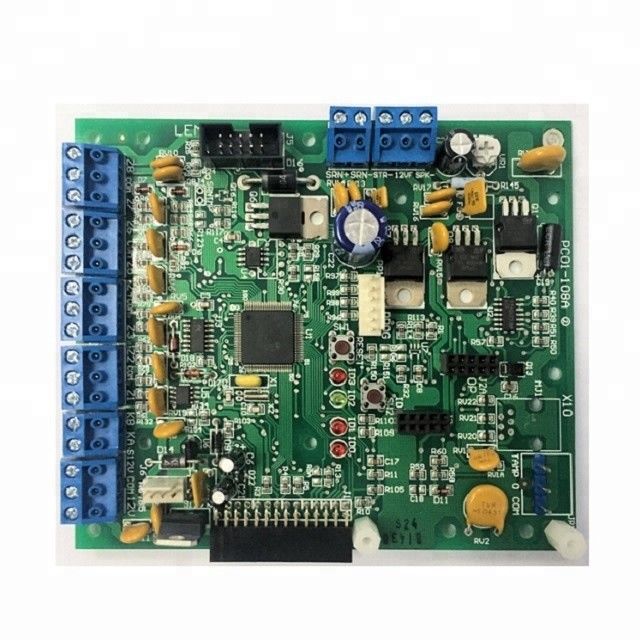

PCBA Picture

2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card2 Layers PCBA  PCB Circuit Board FR4 Material GPS GSM Tracker Digital SIM Card

Contact Details
Shenzhen Shinelink Technology Ltd

Contact Person: Ms Xia

Tel: +8613590384973

Send your inquiry directly to us (0 / 3000)
