Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval

China Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier
Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval supplier

Large Image :  Rigid - Flex PCB Polyimide Flexible Led Circuit Board 0.2mm Thickness ROhs Approval

Product Details:

Place of Origin: China
Brand Name: OEM / ODM
Certification: UL, ROhs
Model Number: SL90106S026

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: ESD Bag
Delivery Time: 5-7 days
Payment Terms: T/T, Western Union, MoneyGram,Paypal
Supply Ability: 10000 Piece/Pieces per Day
Contact Now
Detailed Product Description
Layer: Multilayer Board Thickness: 0.2mm
Surface: Immersion Gold Features 1: Gerber/PCB File Needed
Features 2: 100% E-test Features 3: 3 Years Guarantee

Multilayer Flexible PCB Board Rigid-flex PCB Polyimide PCB 0.2mm thick



This is a type of 4 layer flexible printed circuit for the application of Wireless Intercom at 0.2mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data.





Flexible circuits are also used extensively in other applications and industries including:



Communications
Consumer Electronics
Automotive
Medical
Industrial
Aerospace
Military
Transportation





How To PCB Quote

Starting Requirements and Specifications
(1) Gerber data for all artwork layers
(2) Aperture list (If artwork data are RS-274-X format,Please ignore this.)
(3) Drill file (including hole sizes)
(4) Outline panel drawing
(5) Special notes or "Read Me" files pertaining to:
1 Board material and thickness
2 Finished copper thickness
3 Color / type of solder-mask
4 Color of silkscreen
5 Surface finishes (HAL Pb free, immersion gold etc.)
6 Lay up for multilayer printed board
7 Controlled impedance
8 Other special requirements or instructions



Parameter and data sheet



Max. Size of Flexible PCB

600*400mm

Max. Number of Layers

8

Board Type

Flexible PCB

Board Thickness

0.15mm

Board Material

PET 25µm

Board Material Supplier

Shengyi

Tg Value of Board Material

60℃



PTH Cu thickness

≥20 µm

Inner Iayer Cu thicknes

N/A

Surface Cu thickness

35 µm





Coverlay Colour

Yellow Top / White Bottom

Number of Coverlay

2

Thickness of Coverlay

25 µm

Stiffener Material

Polyimide

Stiffener Thickness

0.2mm





Type of Silkscreen Ink

IJR-4000 MW300

Supplier of Silkscreen

TAIYO

Color of Silkscreen

Black

Number of Silkscreen

1



Peeling test of Coverlay

No peelable

Legend Adhesion

3M 90℃ No peeling after Min. 3 times test



Surface Finish

Immersion Gold

Thickness of Nickle/Gold

Au: 0.03µm(Min.); Ni 2-4µm

RoHS Required

Yes

Famability

94-V0



Thermal Shock Test

Pass, -25℃±125℃, 1000 cycles.

Thermal Stress

Pass, 300±5℃,10 seconds, 3 cycles.

No delamination, no blistering.

Function

100% Pass electrical test

Workmanship

Compliance with IPC-A-600H & IPC-6013C Class 2




Flexible PCB / FPCB Applications



FPCBs are used widely in everyday technology and electronics in addition to high-end, complex completed components. Two of the most prominent examples of flexible circuit usage is in modern portable electronics, devices, hard disk drives and desktop printers.

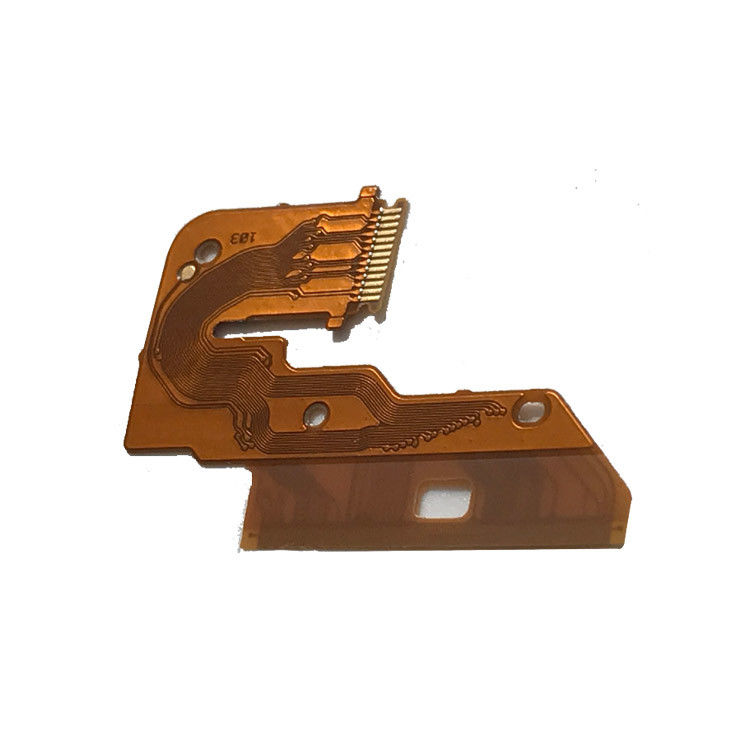

FPCB Photo
