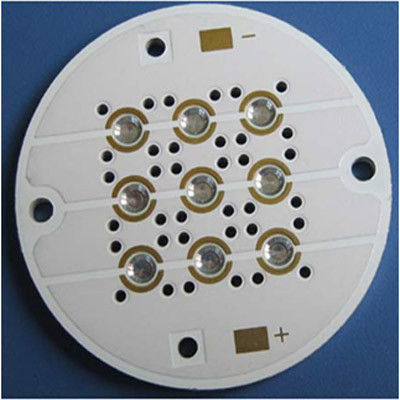

HASL Aluminum pcb board / metal printed circuit board with 2.0mm

HASL Aluminum pcb board / metal printed circuit board with 2.0mm

  • High Light

    aluminum pcb manufacturer

    ,

    metal printed circuit board

  • Surface Finish
    HASL
  • Board Thickness
    2.0mm
  • Min.hole Size
    0.2mm
  • Min.Line Width
    0.075mm
  • Feature
    100% E-test
  • Soldermask
    White
  • Place of Origin
    China
  • Brand Name
    OEM/ODM
  • Certification
    UL,RoHS, CE
  • Model Number
    SL71208L009
  • Minimum Order Quantity
    1pc
  • Price
    Negotiable
  • Packaging Details
    ESD package
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    1000pcs per day

HASL Aluminum pcb board / metal printed circuit board with 2.0mm

HASL Aluminum pcb board metal printed circuit board with 2.0mm





Aluminium PCB Metal Base Layer



Usually, considering the cost and technical characteristic, aluminium is the ideal choice. The available aluminum plates are 6061,5052,1060 etc. If there is a higher heat transfer performance, mechanical properties, electrical properties and other special performance requirements, copper, stainless steel plate, iron plate, silicon steel plate, etc can also be used.



Features



1. High quality products, Europoean and US standard

2. 3528 or 5050 SMD LED adopted,high brightness ,stable performance.

3. long lifetime,5% attenuation after 2500 hours,life time is 80000-100000 hours

4. Energy saving and environmental friendly.

5. 5m/rell is the standard package,but the size can be customized

6. Various of LED density optional, e.g.30LEDs/M,60LEDs/M,96LEDs/M. etc.

7. Each unit of 3LEDs can be cut out at regular segments.

8. White, warm white,red,green,blue and yellow color and RGB available.



Specification



1. Surface Treatment ---- HASL,Flash gold Immersion Gold/Nickle,OSP

2. Number of Layer ----- Single Sided , Two-sided and multilayer ,Special layer

3. Max. PCB Size ----- 600mm×500mm

4. PCB Thickness ----- 0.5-5.0mm

5. Copper Foil Thickness ----- H 1 2 3 4 6 10 (oz)

6. Insulating Layer Thickness ----- 50 75 100 125 150 (um)

7. Metal Base Type ----- Al (1100,5052,6061),Cu, Fe, Stainless Steel etc.

8. Metal Substrate ----- 0.5 0.8 1.0 1.2 1.5 2.0 3.0 3.2 (mm)

9. Shaping ----- Die PunchingStampingRouteV-Cut

10.Solder Mask Colour ----- GreenWhiteBlackRedYellow

11. The Minimum Letter Height ----- 0.8 (mm)

12. The Minimum Letter Line Width ----- 0.15 (mm)

13.The Minimum Line Width ----- 0.15 (mm)

14. The Minimum Line Spacing ----- 0.15 (mm)

15. The Minimum Hole Diameter ----- 0.5 (mm)

16. Special hole ----- Spot facing, ,cup hole

17. File Format ----- Gerberprotelpowerpcbactocad





PCB Capabilities



Number of Layer 1 - 20 Layer
Maximum Processing Area 680 × 1000MM
Min Board Thickness 2 Layer - 0.3MM ( 12 mil )
  4 Layer - 0.4MM ( 16 mil )
  6 Layer - 0.8MM ( 32 mil )
  8 Layer - 1.0MM ( 40 mil)
  10 Layer - 1.1MM ( 44 mil )
  12 Layer - 1.3MM ( 52 mil )
  14 Layer - 1.5MM ( 59 mil )
  16 Layer - 1.6MM ( 63 mil )
  18 Layer - 1.8MM ( 71 mil )
Finished Board Thickness Tolerance Thickness ≤ 1.0MM, Tolerance: ± 0.1MM
  1.0MM ≤ Thickness ≤ 6.5MM, Tolerance ± 10%
Twisting and Bending ≤ 0.75%, Min: 0.5%
Range of TG 130 - 215 ℃
Impedance Tolerance ± 10%, Min: ± 5%
Hi-Pot Test Max: 4000V/10MA/60S
Surface Treatment HASL, With Lead, HASL Free Lead
  Flash Gold, Immersion Gold
  Immersion Silver, Immersion Tin
  Gold Finger, OSP





About us



Shinelink Technology Ltd is more than just a leading PCB manufacturer. We are capable of providing all PCB assembly needs inculding full turnkey and partial turnkey printed circuit board assembly services.



For full turn-key, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.



We has modernized its PCB assembly services to offer a one-stop, turn-key PCB assembly service which includes parts, fabrication and assembly - reducing production costs while improving quality and convenience.





Our Pcba service include



1. PCB board file with parts list provided by customers

2. PCB board made, circuit board parts purchased by us

3. PCB board with parts assembled

4. Electronic testing circuit board or PCBA

5. Fast delivery, anti-static package

6. RoHS Directive-compliant, lead-free

7. One stop service for PCB design, PCB layout, PCB manufacture, components purchasing, PCB assembly, test, packing and PCB delivery
