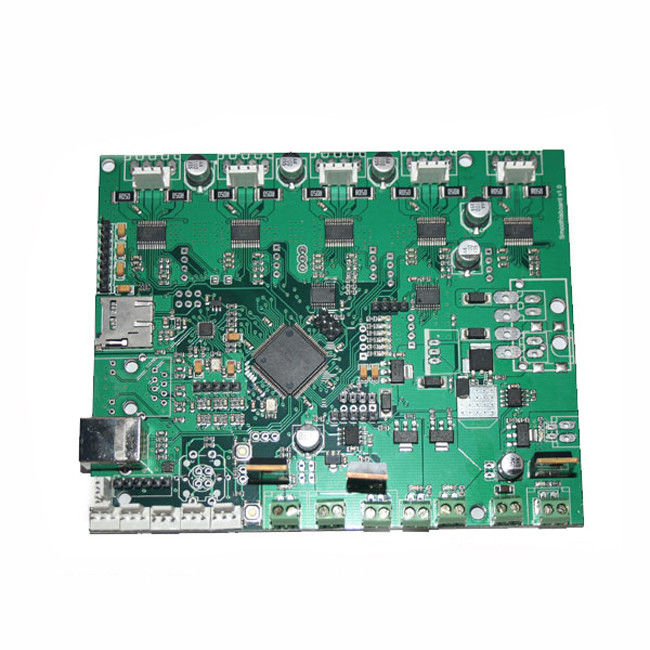

Green Through Hole Circuit Board SMT PCB Assembly Blind Buried PCB

Green Through Hole Circuit Board SMT PCB Assembly Blind Buried PCB

  • High Light

    smt assy

    ,

    smt pcba

  • Material
    FR4 TG140
  • Board Thickness
    1.6mm
  • Copper Thickness
    1OZ
  • Feature 1
    Gerber/PCB File Needed
  • Feature 2
    100% E-test
  • Feature 3
    2 Years Guarantee
  • Place of Origin
    China
  • Brand Name
    OEM and ODM
  • Certification
    CE,UL,Rohs
  • Model Number
    SL80227L011
  • Minimum Order Quantity
    1pc
  • Price
    Negotiation
  • Packaging Details
    ESD bags
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000pcs per day

Green Through Hole Circuit Board SMT PCB Assembly Blind Buried PCB

Through Hole Circuit Board SMT PCB Assembly Blind Buried PCB





About Shinelink



Shinelink Technology Ltd is more than just a leading PCB manufacturer. We are capable of providing all PCB assembly needs inculding full turnkey and partial turnkey printed circuit board assembly services.



For full turn-key, we take care of the entire process, including preparation of Printed Circuit Boards, procurement of components, online order tracking, continuous monitoring of quality and final assembly. Whereas for partial turn-key, the customer can provide the PCBs and certain components, and the remaining parts will be handled by us.



We has modernized its PCB assembly services to offer a one-stop, turn-key PCB assembly service which includes parts, fabrication and assembly - reducing production costs while improving quality and convenience.



Quote requirement:



Gerber file of the bare PCB board

BOM (bill of material) for assembly

To short the lead time, please kindly advise us if there is any acceptable components substitution

Testing guide and test fixtures if necessary

Programming files and programming tool if necessary

Schematic if necessary



PCB capability and services:


1. Single-sided, double-sided & multi-layer PCB (up to 30 layers)
2. Flexible PCB (up to 10 layers)
3. Rigid-flex PCB (up to 8 layers)
4. CEM-1, CEM-3 FR-4, FR-4 High TG, Polyimide, Aluminum-based material.
5. HAL, HAL lead free, Immersion Gold/ Silver/Tin, Hard Gold, OSP surface treatment.
6. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard.
7. Quantities range from prototype to volume production.
8. 100% E-Test



Detail PCBA Capability



Turnkey PCBA PCB+components sourcing+assembly+package
Assembly details SMT and Thru-hole, ISO SMT and DIP lines
Lead Time Prototype: 15 work days. Mass order: 20~25 work days
Testing on products Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed PCB: Gerber files(CAM, PCB, PCBDOC)
Components: Bill of Materials(BOM list)
Assembly: Pick-N-Place file
PCB Panel Size Min size: 0.25*0.25 inches(6*6mm)
Max size: 20*20 inches(500*500mm)
PCB Solder Type Water Soluble Solder Paste, RoHS lead free
Components details Passive Down to 0201 size
BGA and VFBGA
Leadless Chip Carriers/CSP
Double-sided SMT Assembly
Fine Pitch to 0.8mils
BGA Repair and Reball
Part Removal and Replacement
Component package Cut Tape,Tube,Reels,Loose Parts
PCB assembly
process
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing






FAQ



1. What service can you provide?



We can provide PCB circuit board gerber file design,Copy and Clone,OEM and ODM service.Not only produce PCB,PCB Assembly,but also Mold making ,Plastic Injection,and Complete products



2. Are my design files secure when I send them to you?



Your files are held in complete safety and security while Shinelink Technology Ltd is in possession of them. Your files are never shared nor will any third parties have access to your design files. Since they are your property, we respect the copyright of your files. The customer controls the disposition of these files per your requirements and written approval.



3. For small quantity orders, can you produce prototype PCBs?



Yes. Shinelink Technology Ltd has the capability to produce circuit boards in any amount. But,the greater the quantity, the greater the cost savings.



4. Do you have an order minimum?



We don't have MOQ, accept order with as low as a quantity of 1 (piece or panel).



5. What file formats do you accept for PCB assembly?



Gerber and CAM Auto CAD DXF, DWG formats.
