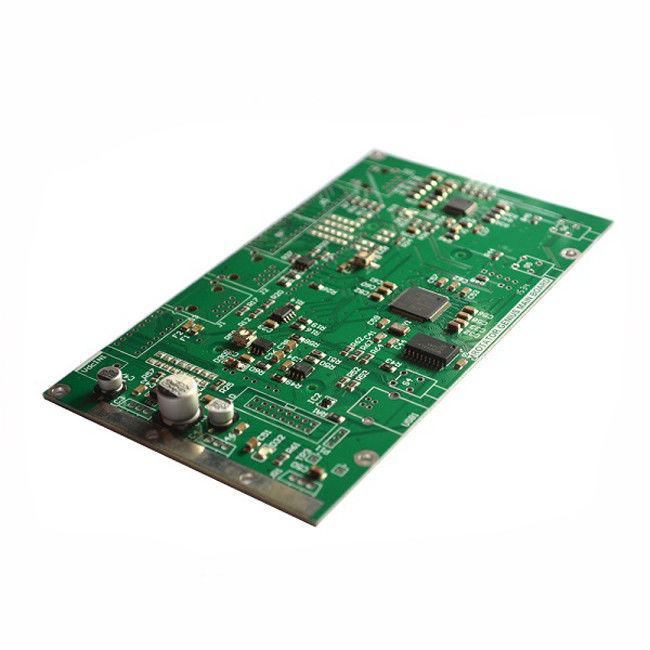

PCB manufacturing and assembly Electronic PCB Assembly OEM Service
Orientronic PCB assembly equipmet
1. Fully automatic SMT stencil printer: FolunGwin Win-5
2. SMT machine: Siemens SIPLACE D1/D2/Siemens SIPLACE S20/F4
3. Reflow oven: FolunGwin FL-RX860
4. Wave soldering machine: FolunGwin ADS300
5. Automated optical inspection (AOI): Aleader ALD-H-350B
1. Fast PCB Fabrication for Samples and Mass Production
2. Electronic Components Sourcing Services
3. PCBA Assembly Services:SMT,DIP,BGA...
4. Function Test
5. Stencil,Cable and Enclosure Assembly
6. Reverse engineering service
7. Standard Packing and On time Delivery
Engineering Support
PCB file will be checked by our PCB engineering team before production and PCBA boards will be test according to our engineering testing guide before shipment.
Customers Service
Every feedback to our service department will be dealt with in time.
Customers Solutions
Provide reasonable suggestion with the pcb files design and bom list choice to Enhance the competitiveness of product in the markets.
PCB Assembly with Full Tracking for Shipment:
Systematic order process, could check the production status of the entire purchase order
Main PCB Assembly Products Application
1. Household Appliances
2. Medical Products
3. Automotive Products
4. Industrial Products
5. Communication Products(AVL/GPS/GSM Devices)
6. Consumer Electronics
PCB Manufacturing Lead Time.
| Layer/Days | Sample(Normal) | Sample(Fast) | Mass Production |
| Single/Double | 2-3days | 24hours | 5-7days |
| Four Layer | 7-10days | 3days | 7-10days |
| Six Layer | 7-10days | 5days | 13-15days |
| Eight Layer | 15-20days | 7days | 15-20days |
Reverse Engineering of Electronic PCB Assembly Manufacturing Products
We has developed capabilities of generating the necessary manufacturing documentation from finished
products. Services include.
1. Artwork and PCB Scanning
2. Schematics and Gerber File Generation
2. Bill of Material and Parts List Generation
PCB Assembly Capabilities
| Turnkey PCBA | PCB+components sourcing+assembly+package |
| Assembly details | SMT and Thru-hole, ISO lines |
| Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
| Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
| Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
| Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
| Components: Bill of Materials(BOM list) | |
| Assembly: Pick-N-Place file | |
| PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
| Max size: 20*20 inches(500*500mm) | |
| PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
| Components details | Passive Down to 0201 size |
| BGA and VFBGA | |
| Leadless Chip Carriers/CSP | |
| Double-sided SMT Assembly | |
| Fine Pitch to 0.8mils | |
| BGA Repair and Reball | |
| Part Removal and Replacement | |
| Component package | Cut Tape,Tube,Reels,Loose Parts |
| PCB assembly process |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |
Our products are sold all over the world, you can rest assured.
