Making printed circuit boards Electronic PCB Assembly GPS PCBA
Main PCB Assembly Products Application
1. Household Appliances
2. Medical Products
3. Automotive Products
4. Industrial Products
5. Communication Products(AVL/GPS/GSM Devices)
6. Consumer Electronics
PCB Manufacturing Lead Time.
Layer/Days | Sample(Normal) | Sample(Fast) | Mass Production |
Single/Double | 2-3days | 24hours | 5-7days |
Four Layer | 7-10days | 3days | 7-10days |
Six Layer | 7-10days | 5days | 13-15days |
Eight Layer | 15-20days | 7days | 15-20days |
Reverse Engineering of Electronic PCB Assembly Manufacturing Products
We has developed capabilities of generating the necessary manufacturing documentation from finished
products. Services include.
1. Artwork and PCB Scanning
2. Schematics and Gerber File Generation
2. Bill of Material and Parts List Generation
PCB Assembly Capabilities
Turnkey PCBA | PCB+components sourcing+assembly+package |
Assembly details | SMT and Thru-hole, ISO lines |
Lead Time | Prototype: 15 work days. Mass order: 20~25 work days |
Testing on products | Flying Probe Test, X-ray Inspection, AOI Test, functional test |
Quantity | Min quantity: 1pcs. Prototype, small order, mass order, all OK |
Files we need | PCB: Gerber files(CAM, PCB, PCBDOC) |
Components: Bill of Materials(BOM list) | |
Assembly: Pick-N-Place file | |
PCB panel Size | Min size: 0.25*0.25 inches(6*6mm) |
Max size: 20*20 inches(500*500mm) | |
PCB Solder Type | Water Soluble Solder Paste, RoHS lead free |
Components details | Passive Down to 0201 size |
BGA and VFBGA | |
Leadless Chip Carriers/CSP | |
Double-sided SMT Assembly | |
Fine Pitch to 0.8mils | |
BGA Repair and Reball | |
Part Removal and Replacement | |
Component package | Cut Tape,Tube,Reels,Loose Parts |
PCB assembly process |
Drilling-----Exposure-----Plating-----Etaching & Stripping-----Punching-----Electrical Testing-----SMT-----Wave Soldering-----Assembling-----ICT-----Function Testing-----Temperature & Humidity Testing |

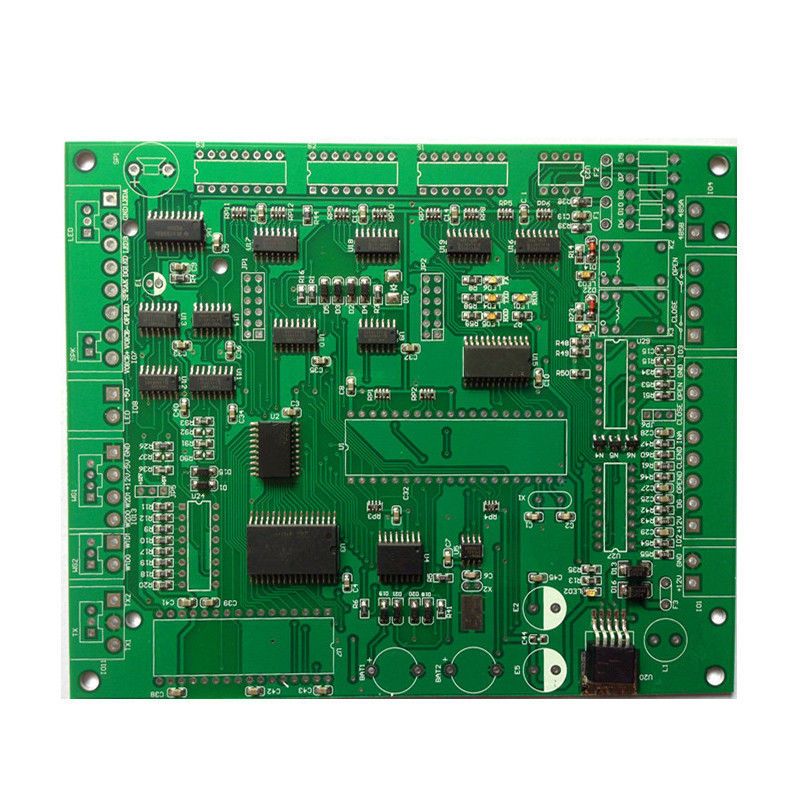

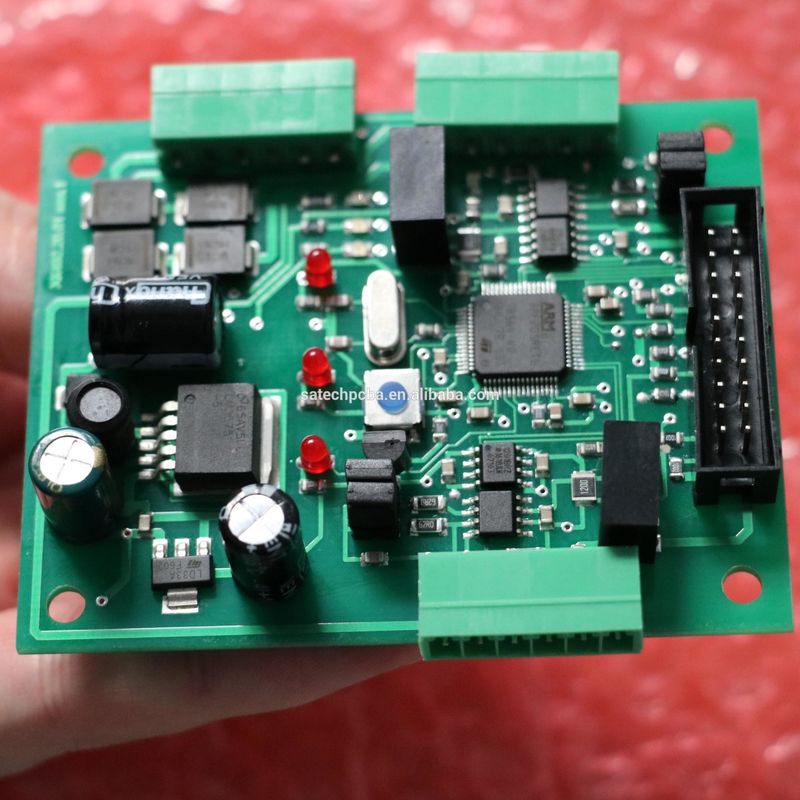

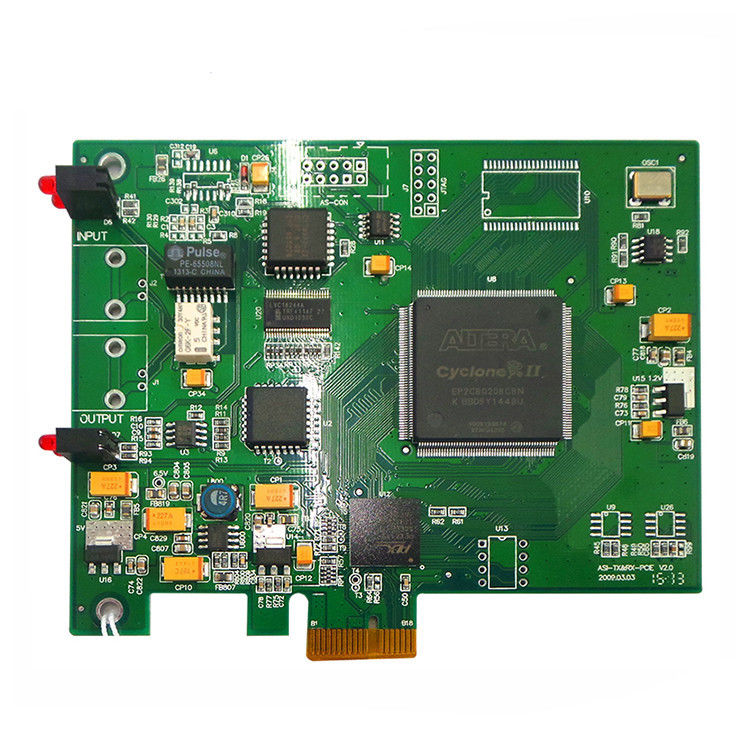

PCBA Picture
