Keypad Membrane Single-sided flexible PCBs FPC Polyimide PCB Board
This is a type of flexible printed circuit for the application of keypad membrane. It’s a single layer FPC at 0.1mm thick. The base laminate is from ITEQ, It’s fabricated per IPC 6012 Class 2 using supplied Gerber data. Polyimide stiffner is applied on the inserting head.
Flexible circuits are also used extensively in other applications and industries including:
Communications
Consumer Electronics
Automotive
Medical
Industrial
Aerospace
Military
Transportation
Parameter and data sheet
|
Max. Size of Flexible PCB |
600*400mm |
|
Max. Number of Layers |
8 |
|
Board Type |
Flexible PCB |
|
Board Thickness |
0.15mm |
|
Board Material |
PET 25µm |
|
Board Material Supplier |
Shengyi |
|
Tg Value of Board Material |
60℃ |
|
|
|
|
PTH Cu thickness |
≥20 µm |
|
Inner Iayer Cu thicknes |
N/A |
|
Surface Cu thickness |
35 µm |
|
|
|
|
Coverlay Colour |
Yellow Top / White Bottom |
|
Number of Coverlay |
2 |
|
Thickness of Coverlay |
25 µm |
|
Stiffener Material |
Polyimide |
|
Stiffener Thickness |
0.2mm |
|
|
|
|
Type of Silkscreen Ink |
IJR-4000 MW300 |
|
Supplier of Silkscreen |
TAIYO |
|
Color of Silkscreen |
Black |
|
Number of Silkscreen |
1 |
|
|
|
|
Peeling test of Coverlay |
No peelable |
|
Legend Adhesion |
3M 90℃ No peeling after Min. 3 times test |
|
|
|
|
Surface Finish |
Immersion Gold |
|
Thickness of Nickle/Gold |
Au: 0.03µm(Min.); Ni 2-4µm |
|
RoHS Required |
Yes |
|
Famability |
94-V0 |
|
|
|
|
Thermal Shock Test |
Pass, -25℃±125℃, 1000 cycles. |
|
Thermal Stress |
Pass, 300±5℃,10 seconds, 3 cycles. No delamination, no blistering. |
|
Function |
100% Pass electrical test |
|
Workmanship |
Compliance with IPC-A-600H & IPC-6013C Class 2 |
Flexible PCB / FPCB Applications
FPCBs are used widely in everyday technology and electronics in addition to high-end, complex completed components. Two of the most prominent examples of flexible circuit usage is in modern portable electronics, devices, hard disk drives and desktop printers.

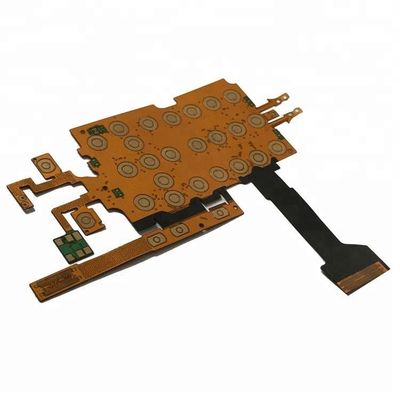

FPCB Photo
