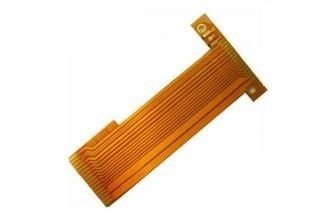

Single sided flexible printed circuit board manufacturers with UL Certification

Single sided flexible printed circuit board manufacturers with UL Certification

  • High Light

    flexible pcb board

    ,

    flexible printed circuit boards

  • Layer
    Single Sided
  • Board Thickness
    0.3mm
  • Certificate
    UL, RoHS
  • Min.Lin Width
    0.075mm
  • Feature 1
    Gerber File Needed
  • Feature 2
    100% E-test
  • Place of Origin
    China
  • Brand Name
    No
  • Certification
    UL, ROhs
  • Model Number
    SL71208L022
  • Minimum Order Quantity
    1pc
  • Price
    Negotiation
  • Packaging Details
    ESD Bag
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 Piece/Pieces per Day

Single sided flexible printed circuit board manufacturers with UL Certification

Single sided flexible printed circuit board manufacturers with UL





Flexible PCB Detail



1. Surface Treatment --- HASL,Flash gold Immersion Gold/Nickle,OSP

2. Number of Layer --- Single Sided , Two-sided and multilayer ,Special layer

3. Max. PCB Size --- 600mm×500mm

4. PCB Thickness --- 0.1- 1.0mm



Company Description


Shinelink company is an experienced PCB and PCBA manufacturer in Shenzhen, China. After several years' developing and improving, our company establishes our main business in three principal areas-Printed Circuit Boards, PCB Assembly and Components Procurement. From prototype to mass production, we are able to gurantee a complete service with technical back up, offering a cost advantage and continuity of supply.

Our aim. High quality, low cost and fast delivery for Flexible PCB(FPC) and PCB Assembly.
Service. One-stop-service for Flexible PCB(FPC) and PCBA Assembly.
Verification. UL, ISO, RoHS
Product Name. High Quality Flexible PCB, Rigid Flex FPC



Advantage



1. Turnkey manufacturing or quick-turn prototypes
2. Board-level assembly or complete system integration
3. Low-volume or mixed-technology assembly for PCBA
4. Even consignment production
5. Supported capabilities





Detailed Specification of Flexible PCB Manufacturing



Technical Specification
Layers 1~10 (flex Pcb) and 2~8 (rigid flex)
Min Panel Size 5mm x 8mm
Max Panel Size 250 x 520mm
Min Finished board thickness 0.05mm (1 sided inclusive copper)
Max Finished board thickness 0.3mm (2 sided inclusive copper)
Finished board thickness tolerance ±0.02~0.03mm
Material Kapton, Polyimide, PET
Base copper thickness (RA or ED) 1/3 oz, 1/2 oz, 1oz, 2oz
Base PI thickness 0.5mil, 0.7mil, 0.8mil, 1mil, 2mil
Stiffner Polyimide, PET, FR4, SUS
Min Finished hole diameter 0.15mm
Max Finished hole diameter 6.30mm
Finished hole diameter tolerance (PTH) ±2 mil ( ±0.050mm)
Finished hole diameter tolerance (NPTH) ±1 mil ( ±0.025mm)
Min width/spacing (1/3oz) 0.05mm/0.06mm
Min width/spacing (1/2oz) 0.06mm/0.07mm
Min width/spacing (1oz) Single layer 0.07mm/0.08mm
Double layer 0.08mm/0.09mm
Aspect Ratio 6:01 8:01
Base Copper 1/3Oz--2Oz 3 Oz for Prototype
Size Tolerance Conductor Width:±10% W ≤0.5mm
Hole Size: ±0.05mm H ≤1.5mm
Hole Registration: ±0.050mm
Outline Tolerance:±0.075mm L ≤50mm
Surface Treatment ENIG: 0.025um - 3um
OSP:
Immersion Tin: 0.04-1.5um
Dielectric Strength AC500V
Solder Float 288℃/10s IPC Standard
Peeling Strength 1.0kgf/cm IPC-TM-650
Flammability 94V-O UL





Specifications

1. Certificate of UL, ISO9001, TS16949.
2. 4-5 days fast Flexible PCB(FPC) and PCB delivery
3. Our Products meet the RoHS & HASL lead-free requirement.
4. Minimum Order: 1 Pieces
5. Flexible PCB(FPC) and PCB manufacturer


Shipping Method and Payment terms


1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.
