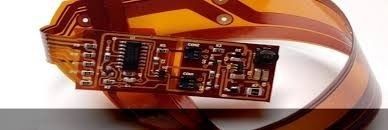

High Density FPC for Moblie phone LCD display Flexibe circuit board

High Density FPC for Moblie phone LCD display Flexibe circuit board

  • High Light

    flexible printed circuit boards

    ,

    flex printed circuit board

  • Service
    OEM Services Provided
  • Solder Mask
    Yellow PI Coverlay Film
  • Copper Thickness
    1OZ
  • Board Thickness
    0.15mm
  • Feature 1
    Gerber File Needed
  • Feature 2
    100% E-test
  • Place of Origin
    China
  • Brand Name
    No
  • Certification
    UL, ROhs
  • Model Number
    SL71209L004
  • Minimum Order Quantity
    1pc
  • Price
    Negotiation
  • Packaging Details
    ESD Bag
  • Delivery Time
    5-7 days
  • Payment Terms
    T/T, Western Union, MoneyGram,Paypal
  • Supply Ability
    10000 Piece/Pieces per Day

High Density FPC for Moblie phone LCD display Flexibe circuit board

High Density FPC for Moblie phone LCD display Flexibe circuit board





Shinelink focus on FPC manufacturing, Professional FPC technology.



1. OEM services provided, Product and Package
2. Sample order is acceptable ,the order quantity is unrestricted.
3. Response to your inquiry within 24 hours.
4. After sending, we will track the products for you once every two days, until you get the products.
5. Professional sales team could answer any technical question at fastest speed and help you to solve any problem on design.
6. Supply the professional suggestion on design and usage.





FPC Process Capability



Items FPC Process Capability
Number of Layers Single Sided, Double Sided, Multilayer, Rigid-flex PCB
Based Material PI, PET
Copper Thickness 9um,12um,18um,35um,70um,105um
Largest Board Area 406mm X 610mm/16"X 24",The largest could be 7 meters length in Single sided Flexible Printed Circuit Board
Minimum Hole Diameter of Mechanical Drilling 0.2mm/0.008"
Minimum Hole Diameter of Laser Drilling 0.075mm/0.03"
Minimum Hole Diameter of Hole-punching 0.50mm/0.02"
Tolerance of Plated Through Hole +/-0.05mm/±0.02"
Minimum Line Width 0.075mm/0.003"
Minimum Line Spacing 0.075mm/0.003"
Peel Strength 1.2kg f/cm
Shape Processing Die Stamping, Cutting, Laser Prototyping
Appearance of Tolerance +/-0.05mm/ +/-0.02"
Solder Mask Type

PI Solder Mask Coverlay Film or PET Solder Mask Covelay Film Lamination





Multi-colored Liquid Photo-Imageable solder Mask Ink, Thermosetting Solder Mask Ink
Surface Treatment Plating Tin, Immersion Tin, Plating Nickel Gold, ENIG (Electroless Nickel Immersion Gold),Immersion Nickel Gold, Chemical Nickel Gold,OSP (Organic Solderability Preservatives), Immersion Silver






Advantages



1. More than 12 years manufacturing experience in FPC field.

2. Focus on FPC this only product.No PCB production line.

3. Near 12000 square meters production base.
4. Caple technical personelconsist of some industry experts and elites who are working for more than 10 years in FPC field.

5. Many advanced and complete production equipments for FPC Manufacturing.

6. All manufacturing process is only made in our plant.
7. Through the professional training, our sales team could offer the clients with the quick answer to the technology question, and the most professional suggestion on the optimization of artwork design. It would help to better improve the project rationality and decrease the production cost, thereby providing with the best cost-effective process plan.

8. All the raw materials passed ROHS certification through SGS and flammability UL94 V-0,inculding FCCL and Polyimide Coverlay Film.



Description



1. Soldermask ink as soldermask layer, including Black, Red, Yellow and Green. Among then, Black one could be also used Black PI coverlay film.

2. FCCL material. Rolled Anneal Copper. But you could change it into Elctro-deposited copper.

3. Strong singal quality.

4. Excellence elctronic property and reliable dielectric performance.

5. Increased the reliablity in circuitry system.

6. Lighter weight than PCB, reduce the weight of final products.

7. High heat resisting property, in favor of increasing heart dissipation

8. Immersion Nickel Gold. Please note that it is not pure gold. Nickel could assist the gold to hard without adding more gold

9. Strong signal quality.

10. Widely used as chip of SIM cards and Smart IC card.

11. Materials thinkness. 18um copper, 25um PI, and 20um adhesive on FCCL, 12.5um PI and 15um adhesive on PI coverlay film. More options please view the below parameter lists.



Specification of standard Polyimide film based coverlay
Specification PI Flim Thickness (um) Adhesive Thickness (um)
0.5mil 12.5 15
1.0mil 25 25
1.0mil 25 30



Specification of standard Haloger-free PI film based flexible copper clad laminate (3- layer FCCL)
Specification Materials Thickness (um)
PI:Copper PI Film Copper Foil Adhesive
0.5 mil:0.5 OZ 12.5 18 13
1 mil:0.5 OZ 25 18 20
1 mil:1 OZ 25 35 20
2 mil:1 OZ 50 35 20





Packing and Delivery

Packing

1. Firstly hermetic plastic bag fill with products,
2. Then bubble sheet separates them,
3. Finally paper carton packing.

Delivery

1. It would take 7-9 days to mufacture it after deposit received.Production time would depend on your drawing and process plan.

2. DHL,FedEx, UPS delivery. It is faster than vessel.Barely deliever it by vessel.
